Artira

Inclined platform wheelchair lift

Ideal for heritage buildings, schools, and restaurants

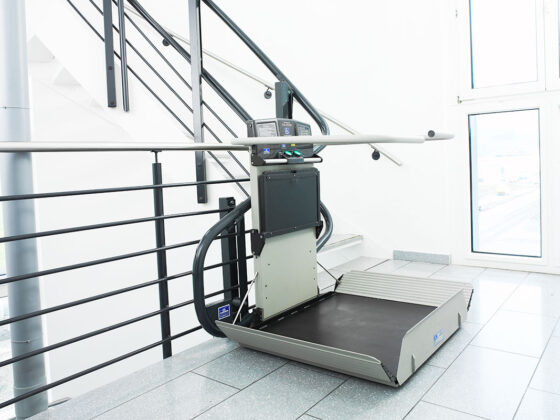

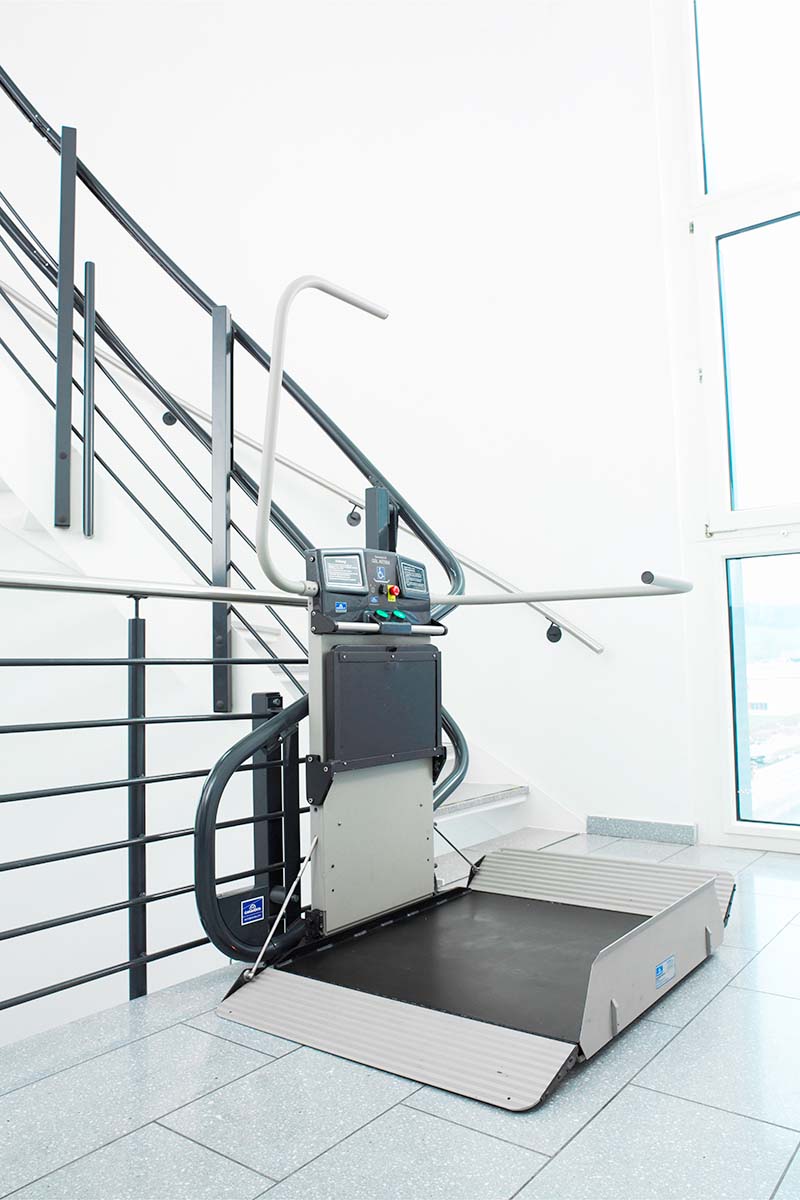

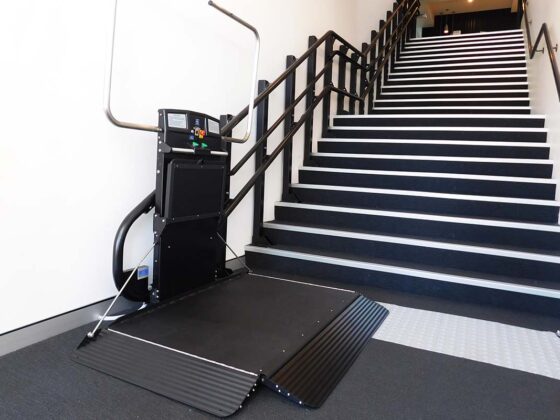

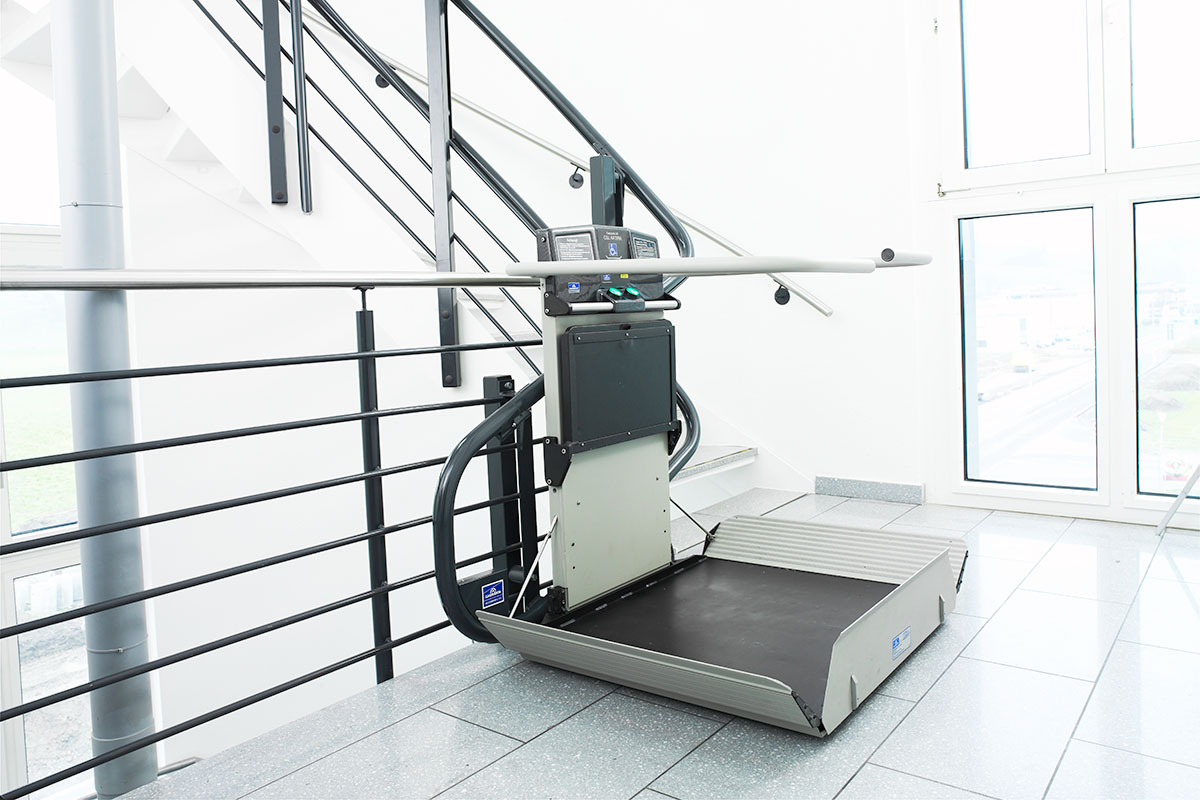

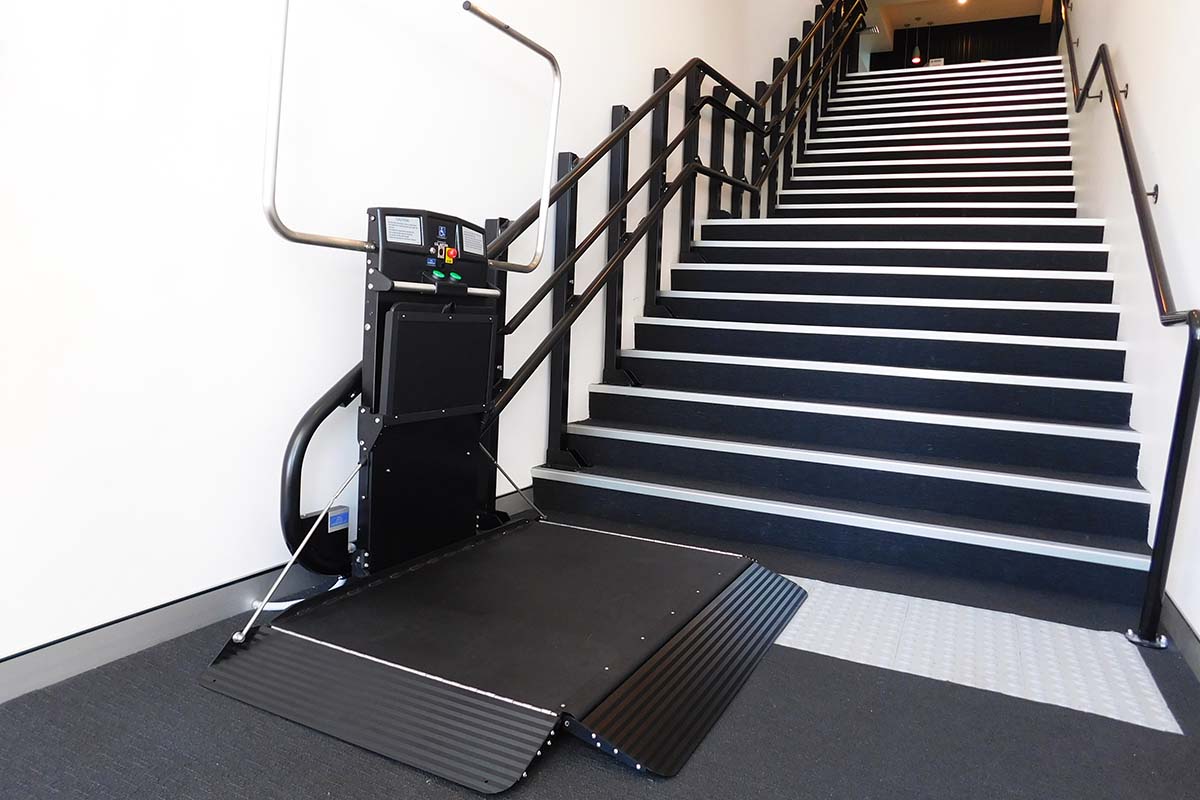

The Garaventa Lift Artira inclined platform wheelchair lift is a safe and reliable way to travel between floors for passengers in wheelchairs and those with limited mobility.

This wheelchair lift fits easily into most stairways and does not require extensive renovation or special construction. Only a mains power connection is required at the upper landing. Technicians normally install Artira lifts in 3 or 4 days.

The Garaventa Lift Artira is ideal for providing accessibility in heritage buildings, schools, churches and restaurants. With the availability of many colours and finishes, you can be sure that the wheelchair lift will blend in with any decor. It is the ideal solution for accessibility in tight spaces, or where floor space is very valuable. In restaurants, for example, the dedicated space required for a vertical platform lift can instead be used for an additional table. Accessibility can be provided by an inclined platform lift which requires minimal dedicated space.

Inclined platform lifts are most often used in existing buildings or to access special use areas, such as stages, projection rooms, press boxes and metro train station platforms. Use of inclined platform lifts in new construction is restricted in some jurisdictions. Contact your Savaria representative for more information.

  • Highlighted below are some of the many standard features of the Garaventa Lift Artira wheelchair lift.

    • Call Stations: The Artira Call Stations are operated by a computer based lift control system that intuitively guides the user through the operating sequence by illuminating the appropriate button to push. Fold and unfold functions are fully automated by simply pushing the easy to use call station buttons.
    • Drive System: The ultra-quiet Drive System is located at the upper end of the Artira and is available in two arrangements; the standard Drive Box and Compact Drive, both drive systems operate using Mains Power.

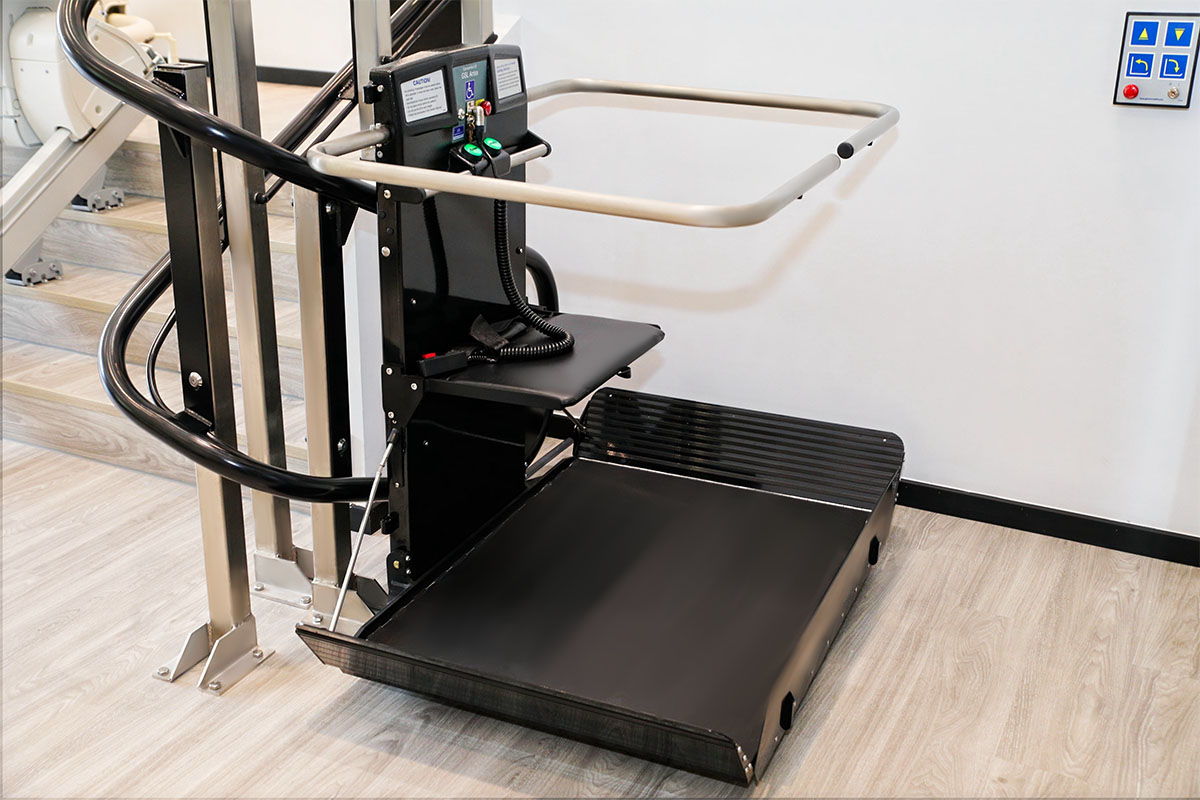

    • Curved Safety Arms: The Curved Safety Arms are fully automatic. When in the guarded position, the inside dimensions of the arms do not take away from the clear platform size of the wheelchair lift.

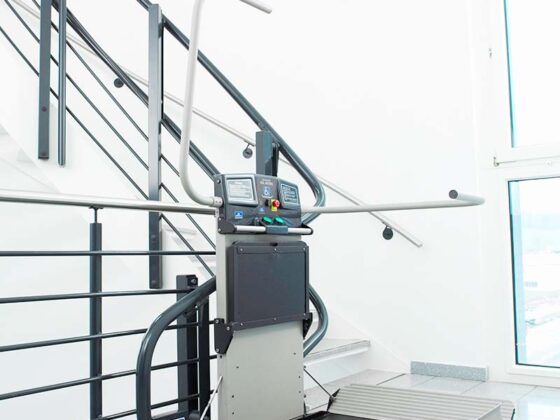

    • Platform Controls: The durable and vandal resistant platform control panel consists of two large illuminated Directional Control Buttons and an Emergency Stop Button. Smart-Lite Technology TM guides the user through operation by illuminating the appropriate button. Safety code requires continuous pressure on control buttons to operate the lift (keep button depressed to keep moving). Buttons are large and easy to use for everyone.
    • Under Platform, Bi-directional and Leading Ramp Sensors: The sensors will automatically stop the lift if the platform should encounter an obstruction.
    • Smooth Start and Stop: The Artira reduces the speed of travel by 50% prior to reaching corners and is programmed to slow the platform travel speed when approaching or departing the landings.
    • Emergency Stop Button: When pushed this large red button will immediately stop the lift.
    • Finishes: The Garaventa Lift Artira is finished in a durable polyester powder paint coating that is electro statically applied and baked. Standard colour is Satin Grey (fine textured).
    • Pedestrian Safety Lights: This illuminated tube lighting located at the base of the ramps visually alerts pedestrians of the platform’s location during travel, while still being discreet to the passenger.
    • Attachment: Mounted directly to a wall or attached to stair treads using support towers (requires sufficient substrate strength).

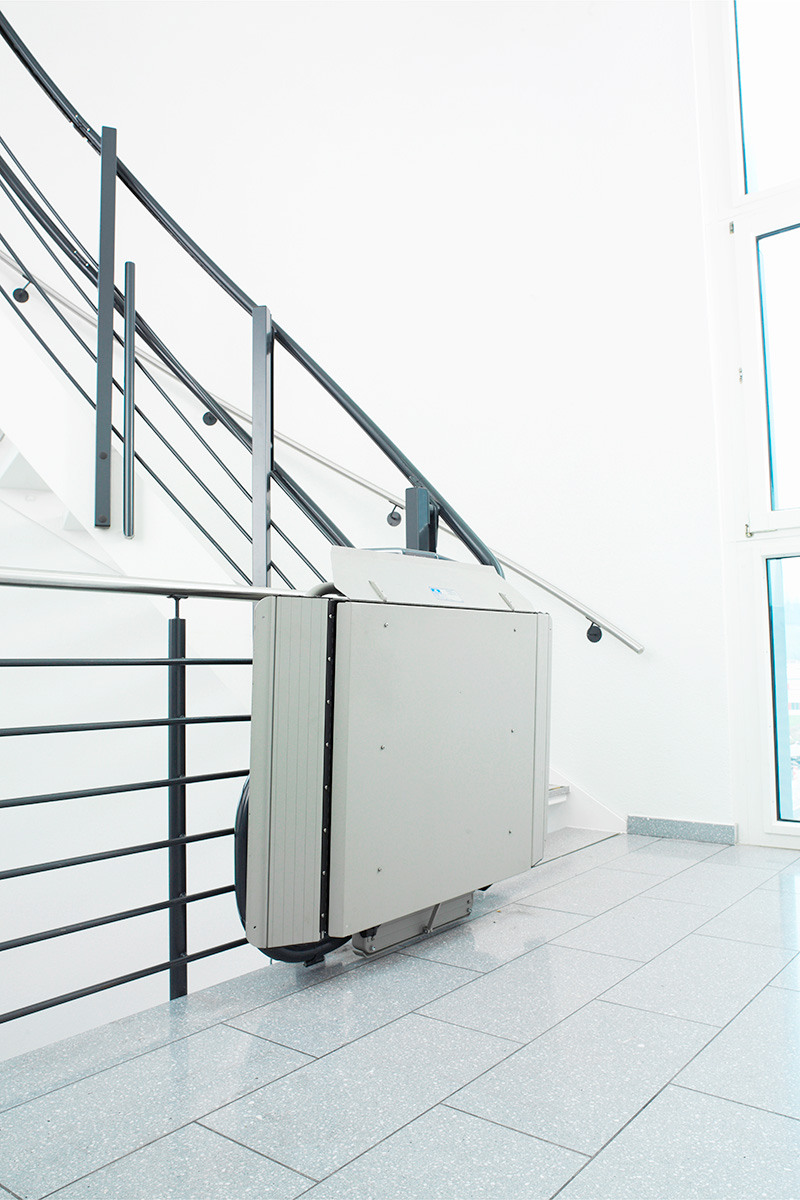

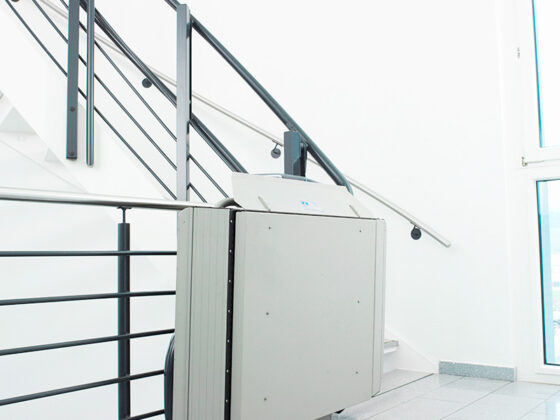

    • Platform Storage: Folded platform conceals and protects safety barrier arms and platform controls from vandalism.
    • Standard Safety Features: Pedestrian Safety Lights,  emergency manual folding and lowering, overspeed safety.

    How to use this wheelchair lift

  • Highlighted below are a number of the Artira’s optional features.

    • Side Load: The Side Load platform is designed for those lifts with confined lower landing areas. An additional side ramp allows the passenger to board the platform diagonally for easier access to the platform.
    • Finishes: The Artira can be finished with optional RAL colours, custom matched colours, stainless steel or painted stainless steel finishes.
    • Auto Fold: This feature will allow the platform to automatically fold if left unattended for a period of time at a landing. This ensures the stairway remains clear in the event someone forgets to fold the platform.
    • Integrated Pedestrian Handrails: An additional rail can be added to the system for pedestrian use.

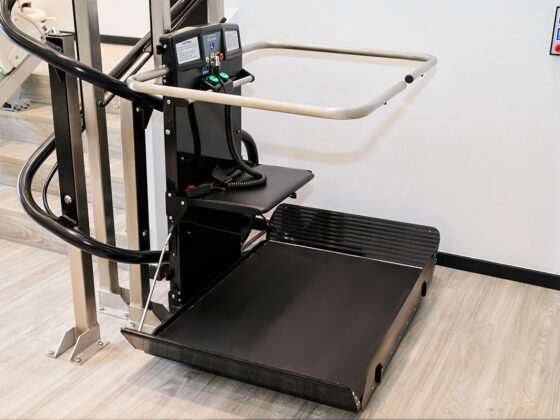

    • Folding Seat: The folding seat enables semi-ambulatory or people with temporary injuries to use the lift.
    • Dek-Lite: The Dek-Lite illuminates the platform for safe loading and unloading available only with the folding seat option.
    • Outdoor Package: When the Stair-Lift is located outdoors, the Stainless Steel finish is required. For a comprehensive listing of stainless steel components consult the Artira Design and Planning Guide.
    • Attendant Remote Control: An attendant would walk beside the Stairlift and operate the hand control.
    • Auxiliary Power System: This system ensures the lift operates during a power outage. This battery-powered system provides power for one hour at a rated load.
    • Platform Lock: This lock secures the platform in its folded position protecting the unit from vandalism (not available on side load platform).
    • Fire Alarm Integration: This option is designed to interface with the building fire safety system, this service interrupts power to the lift when the alarm sounds. This ensures the lift will not obstruct stairway traffic during an evacuation. If the lift is in use when the alarm sounds, it will continue to a designated landing.
    • Audio-Visual Alert: The Audio-Visual Alert notifies pedestrians using the stairway that the lift is in use.
    • Optional Features: under hanger sensors, side of hanger sensors, automatic platform fold, fold-down seat and seatbelt, side load for confined lower landings, wall-mount pedestrian audio-visual alert.

Technical specifications

MODEL
CAB FLOOR AREA
EXTERIOR DIMENSIONS
LOAD
SPEED
Artira 700 mm x 750 mm
800 mm x 900 mm
800 mm x 1050 mm
800 mm x 1220 mm
n/a 300 kg 0.1 m/s
POWER SUPPLY

208-240 VAC, 50/60 Hz on a dedicated 20 amp circuit

DRIVE SYSTEM

a motor, gearbox and PCC controller

TECHNICAL COMPLIANCE

ASME A18.1-2003
EN81-40: 2008

OPERATION

constant pressure

MACHINE ROOM

roomless

USE

residential / commercial
indoor / outdoor

WARRANTY

2 year limited warranty

Documents

Please note, product details for Asia may vary. Please consult our sales offices for complete specifications.
