Lithium-ion technology provides huge performance advantages across the board: smoother operation, faster charging, more lifting cycles on a single charge and more powerful lifting—even at the heaviest capacity.
Packed with design advantages for patient, caregiver and facility—including digital displays, selectable speeds and Bluetooth/Wifi connectivity.
And key features for infection control, enhanced durability, ease of use, and low cost of ownership to satisfy all stakeholders.
Benefits
Draw it and install it.
Let our experts design and install tailored systems for your next project.
Renew. Replace. Retrofit.
Configurable to allow precise retrofitting onto systems from all major manufacturers.
Time to upgrade?
We make it as painless as possible to upgrade aging legacy systems to our next-generation platform.
A Complete Solution
From simple single-track systems to complex room-covering and multi-room configurations, we have the components, accessories, and expertise to design, produce and install tailored solutions for any care settings.

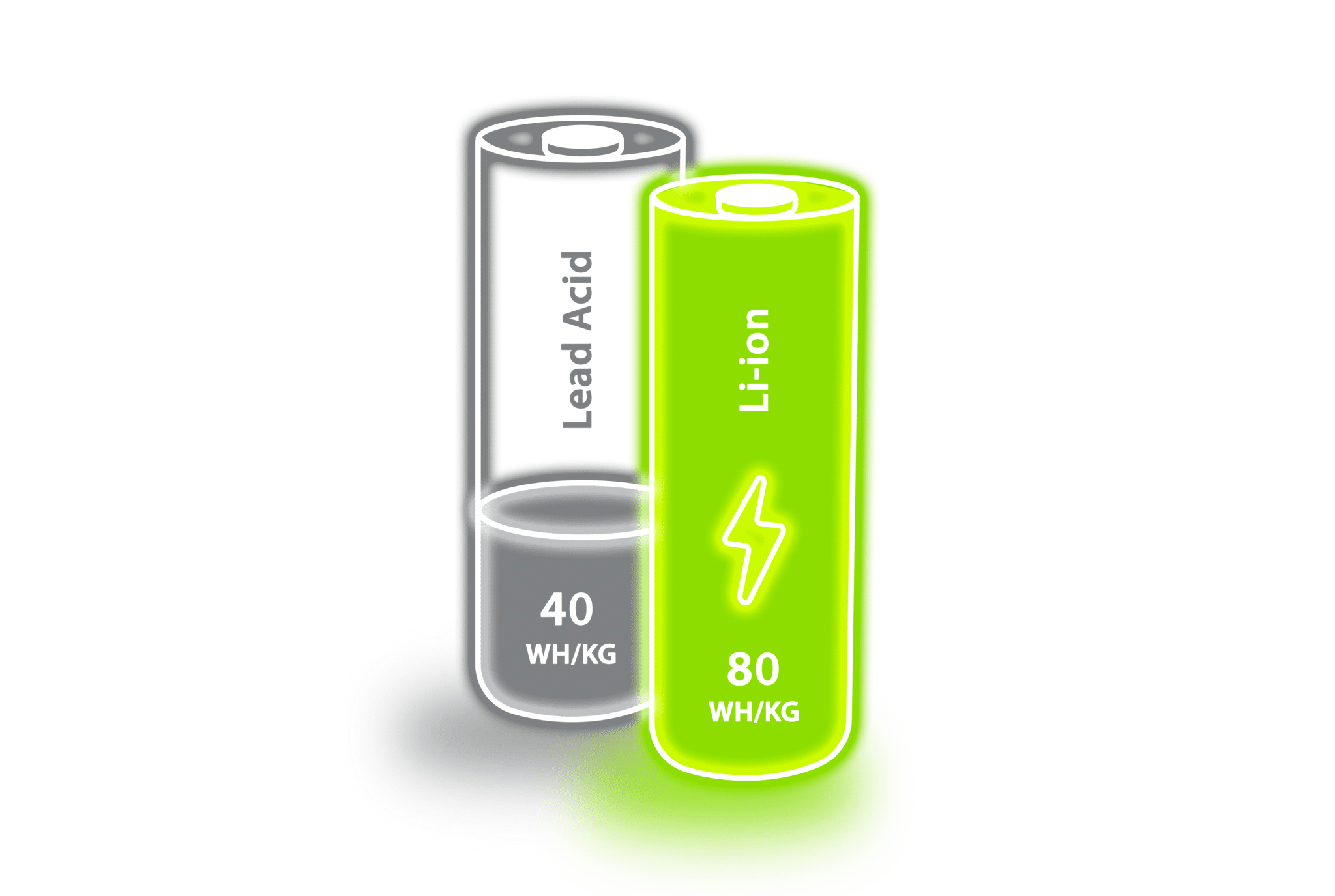

Lithium-ion battery technology
Lithium-ion batteries give the M-Series powerful advantages in reliability, user experience and cost of ownership over traditional lead-acid battery lifts:
- 4X more powerful and 4X lighter
- 50% more lifting cycles: 80 cycles with a 91 kg user on one charge
- Quick charge in 30 minutes, or 2 hours to charge from full depletion
- 150% longer average battery lifespan (5 years vs 12-14 months ) means far fewer replacements and related service calls
- Greener: greatly reduces bulk and frequency of disposal
Better. Stronger. Faster.

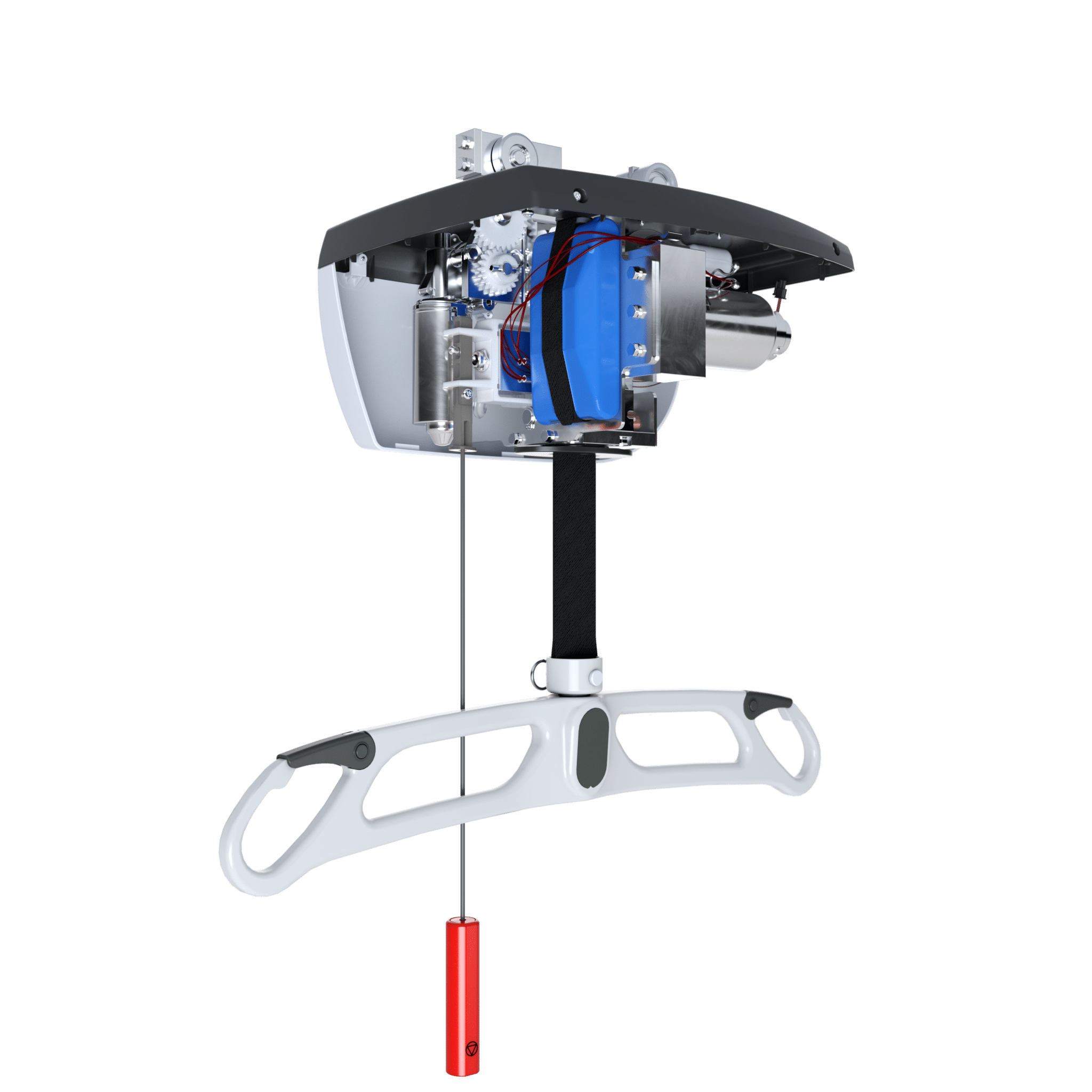

The reduced weight and size of lithium-ion batteries allows use of larger, more robust transmission components. The result: Noticeably faster, smoother lifting even at the highest capacity.

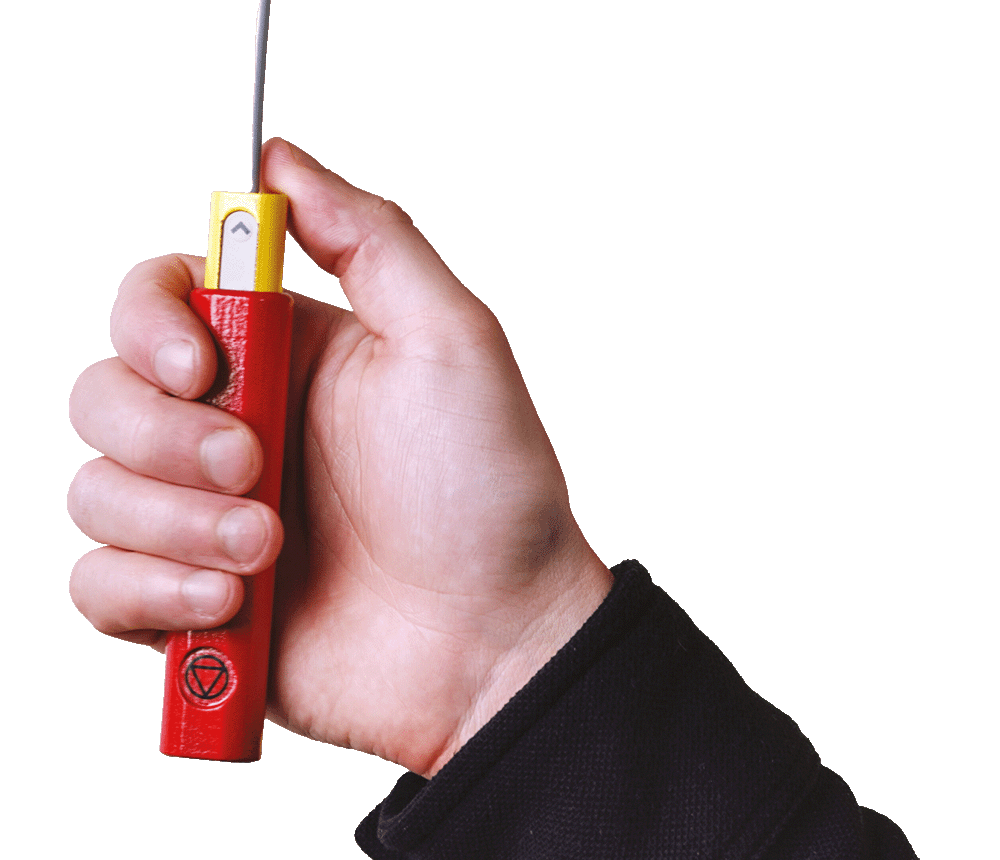

Emergency stop with 3-Down™ three-mode powered emergency function
Emergency stop with 3-Down™ three-mode powered emergency function
- Powered emergency lowering
- Powered emergency raising
- Safe, simple “ladderless” re-set from floor
Wipeable, inherently antimicrobial components and “bulletproof” cord.
Carry bar with integrated weigh scale
- Superior lifting height compared to in-line scales
- Superior portability and usage flexibility compared to in-lift models
- Allows caregiver to maintain eye contact with patient during use
- 600 lbs (272 kg) max load
- Available in Class III (Kg only) or non-Class III (Kg and Lb display) models
- Available with standard or Quick Release System (QRS) attachment
Durability, value & lower cost of ownership
- 3- year warranty
- Soft start /Soft stop reduces wear on motor and transmission
- No-fray design inhibits strap twisting, eliminating abrasion that requires frequent replacement
- Minimal downtime: Simple maintenance, in many cases without removal from track

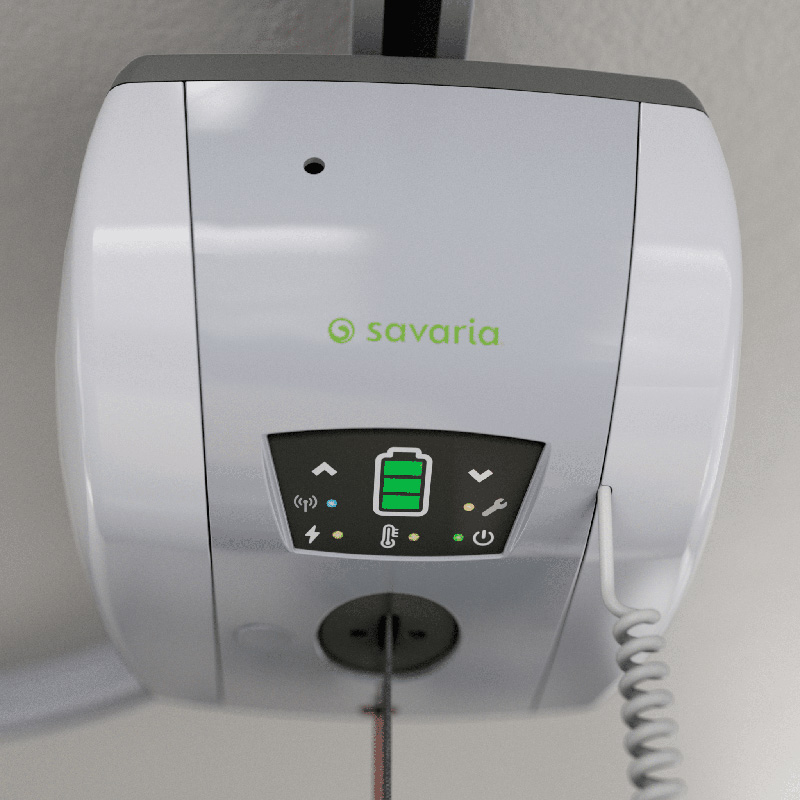

Displays / diagnostics
- Digital, easy-read display option on handset or motor
- Battery level, usage data, variable speed selector, warnings

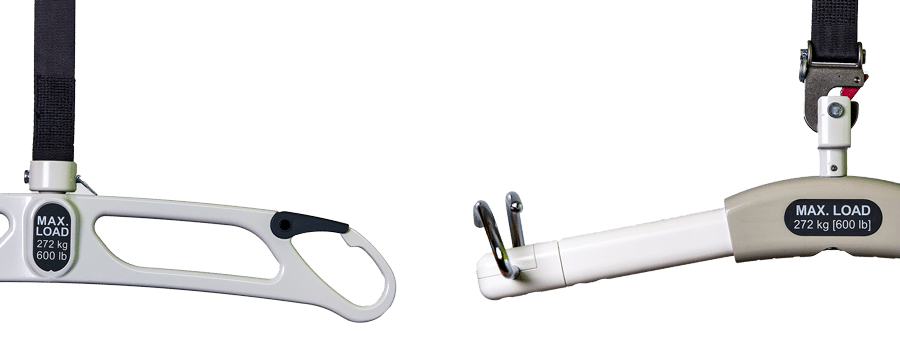

Multiple carry bar options
- 2-point carry bar with built-in grip handle. Innovate SureClip™ latch design provides an extra measure of safety when securing loop sling attachment.
- 4-pt Bullhorn style carry bar, a longtime favorite of providers throughout North America.
- Also available: Quick Release System (QRS) option to allow fast, secure connection and disconnection to maximize flexibility and utilization.
Renew. Replace. Retrofit.
Yes, our experts work with facilities to design and install tailored systems “from scratch” for many new builds and projects.
But M-Series lifts can also be configured to allow easy, precise retrofitting onto track systems from all major ceiling lift manufacturers.
Making it as painless as possible to upgrade aging legacy systems to our next-generation lift technology.
