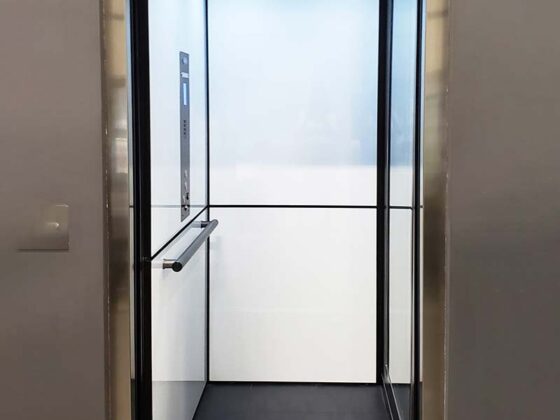

[vc_row padding_top_multiplier=”2x” padding_bottom_multiplier=”2x” equal_column_height=”equal”][vc_column width=”1/3″ rc_heading_color=”white” rc_bg_type=”color” expand_column_bg=”expand-bg-left” animation=”fade-in-left” animation_delay=”200″ animation_duration=”slow” rc_bg_color=”#232222″ grve_css=”{“desktop“:{“padding-right“:“7%“,“class“:“grve-wpb-1664952599947“}}”][impeka_empty_space height_multiplier=”4x”][impeka_title heading_tag=”h2″]Whisper-quiet operation[/impeka_title][impeka_empty_space height_multiplier=”4x”][/vc_column][vc_column width=”2/3″ vertical_content_position=”middle”][vc_column_text]The Zenith is Savaria’s top-of-the-line traditional home elevator. Based on our commercial-grade Orion MRL elevator, the robust Zenith features a unique roped geared traction counterweight design.
- Unique geared traction counterweight design requires only a small space in a closet for components, so a machine room is not needed
- Multiple cab sizes available with capacity up to 635 kg, code permitting
- Services up to 6 stops
- Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home

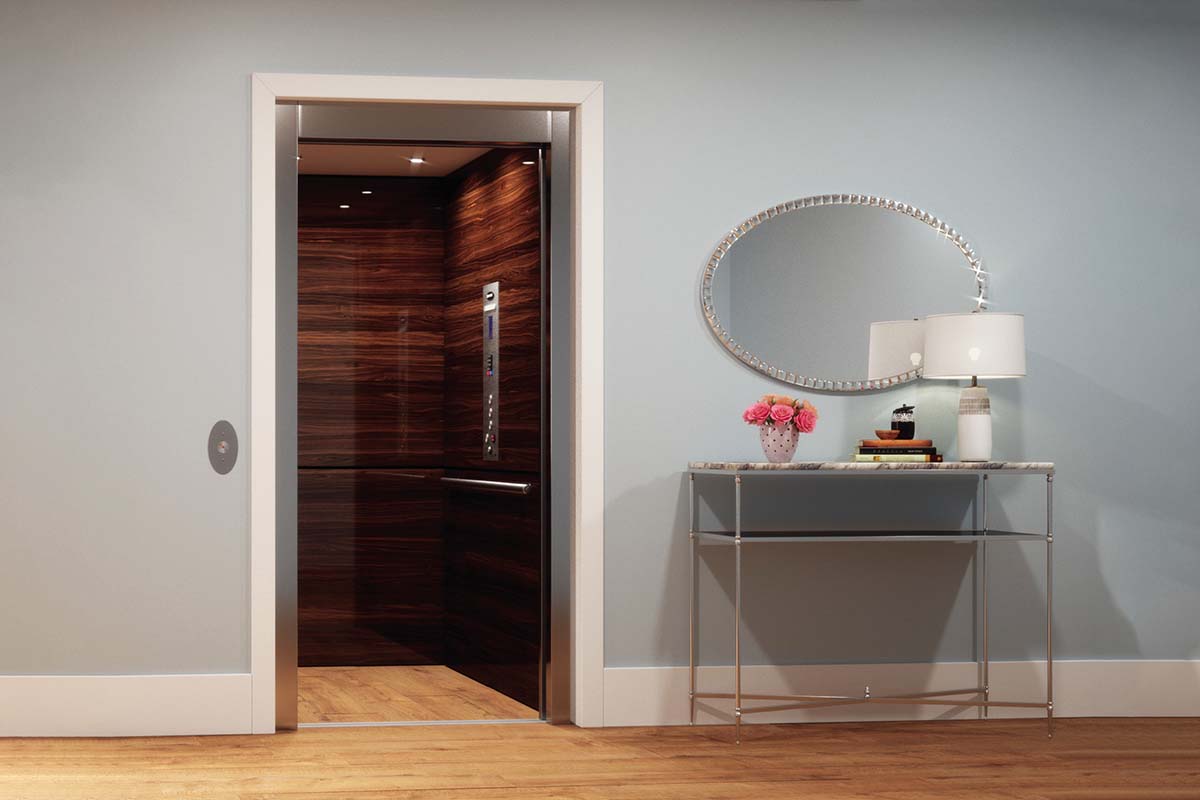

- Customisable cab interior, fixtures and doors
The Eclipse home elevator comes with the same great looks but a geared chain drive![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][impeka_image_carousel type=”advanced” ids=”7522,7524,7525,7536,7526,7527,7528,7530,7531,7534,7537,7533,7532,7535,7576″ items_per_page=”2″ items_tablet_landscape=”2″ items_tablet_portrait=”2″ nav_shape=”” pagination=”yes” pagination_speed=”1000″ title_caption=”caption-only” hover_style=”style-3″ image_effect=”” image_popup_size=”full”][/vc_column][/vc_row][vc_row padding_top_multiplier=”2x”][vc_column width=”2/3″][vc_tta_accordion title_tag=”h3″ section_title_tag=”h6″ c_position=”right” active_section=”1″ heading=”h2″][vc_tta_section title=”Features” tab_id=”1666254449342-5542d1f0-46e1″][vc_column_text]
- Machine roomless: Space-saving and more installation flexibility and less construction needed.
- Counterweight traction with slack cable safety device: Geared motor 1:1 sheave, three 9.525 mm diameter traction cables (ropes), rope wedge sockets.
- Other standard features: 3.6 kg T-rail system, anti-creep device, cartop stop switch, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, oxford white ceiling with 4 LED pot lights, melamine interior in choice of colours or MDF panels.

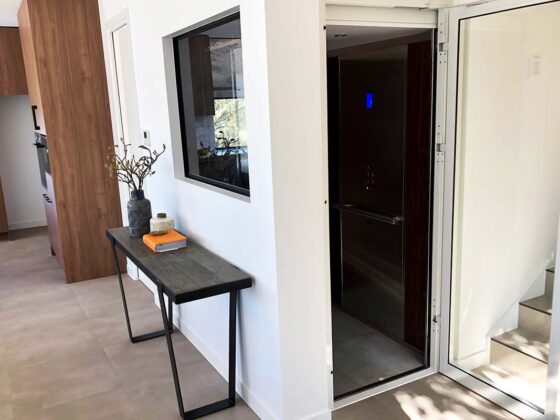

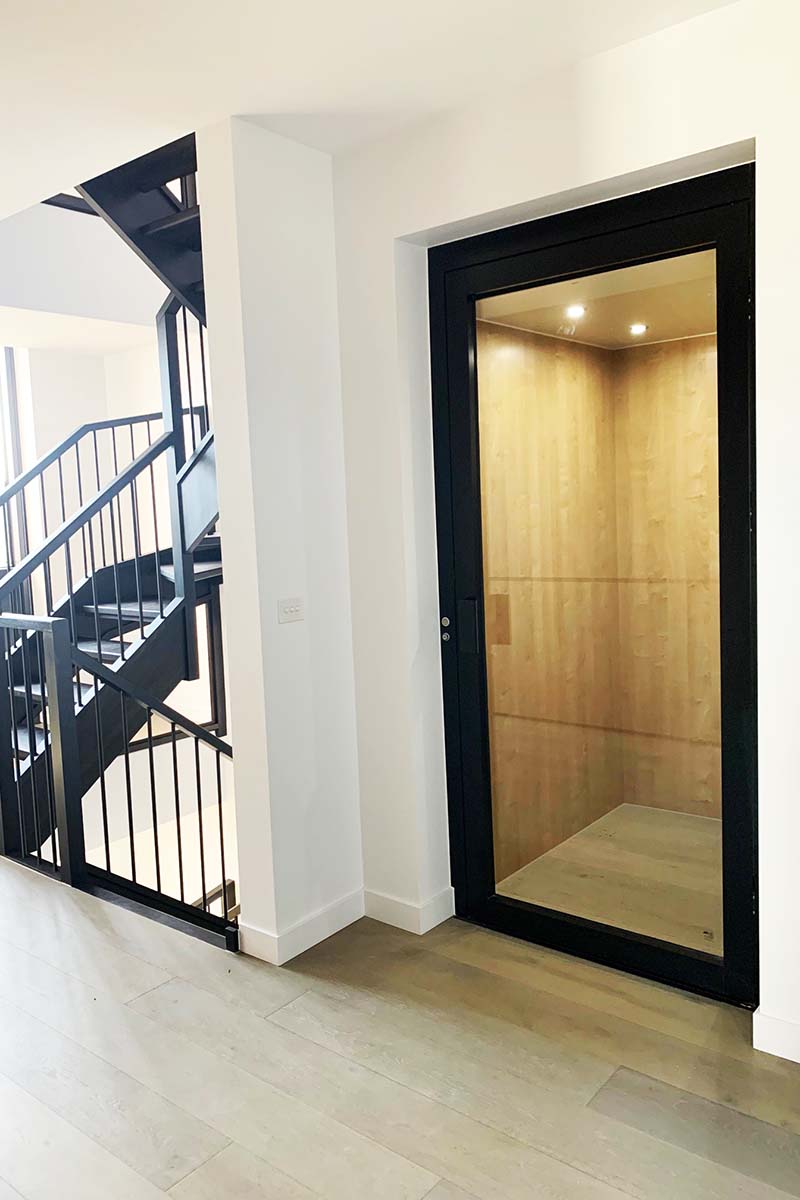

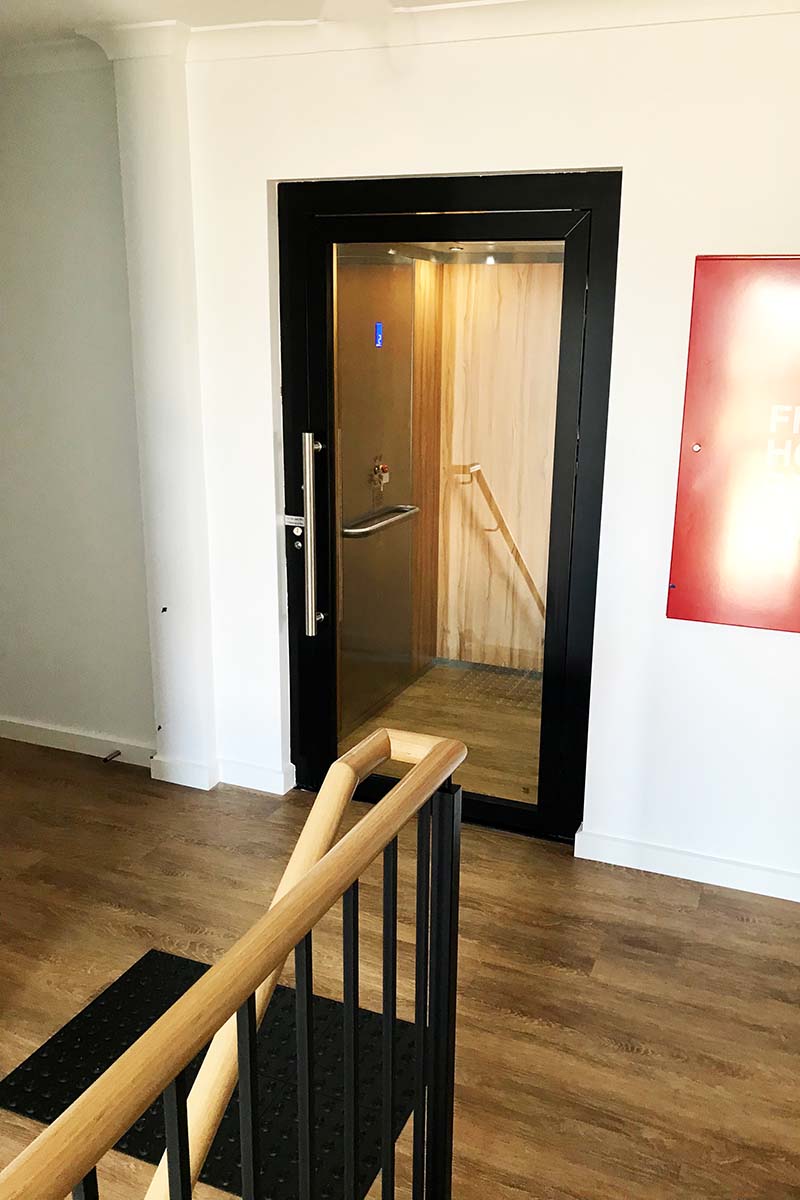

- Standard landing doors: White aluminium hinged (swing) flush door with frosted or clear glass inserts and integrated hall call buttons. Safety light screen incorporated with cab.
- Standard finishes: Choice of 12 melamine panels, stainless steel car operating panel and hall call stations, double plywood floor, oxford white ceiling.
- Safety features: Battery operated (UPS) emergency lowering and lighting, powered emergency lowering, overspeed governor, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator light on hall stations, light screen on cab, slack cable brake system.
[/vc_column_text][/vc_tta_section][vc_tta_section title=”Options” tab_id=”1666254674696-b241d272-d2dc”][vc_column_text]
- Fixture options: brushed brass, blackened stainless steel or architectural white powder coat paint.

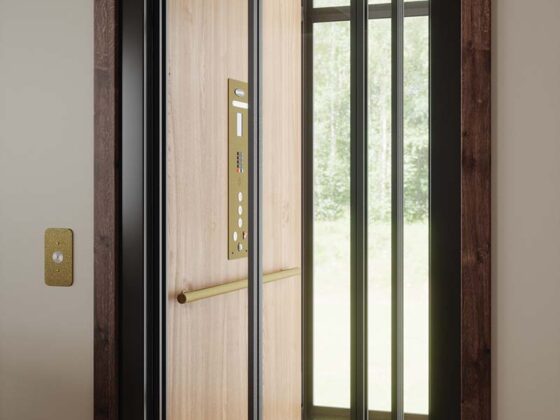

- Stainless accent cab options: Includes 2 cabin walls with accent floor-to-ceiling stainless steel panels with integrated car operating panel and stainless steel handrail. Choose from standard melamine panels.

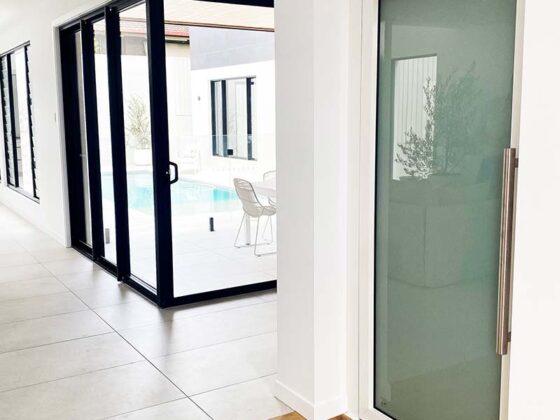

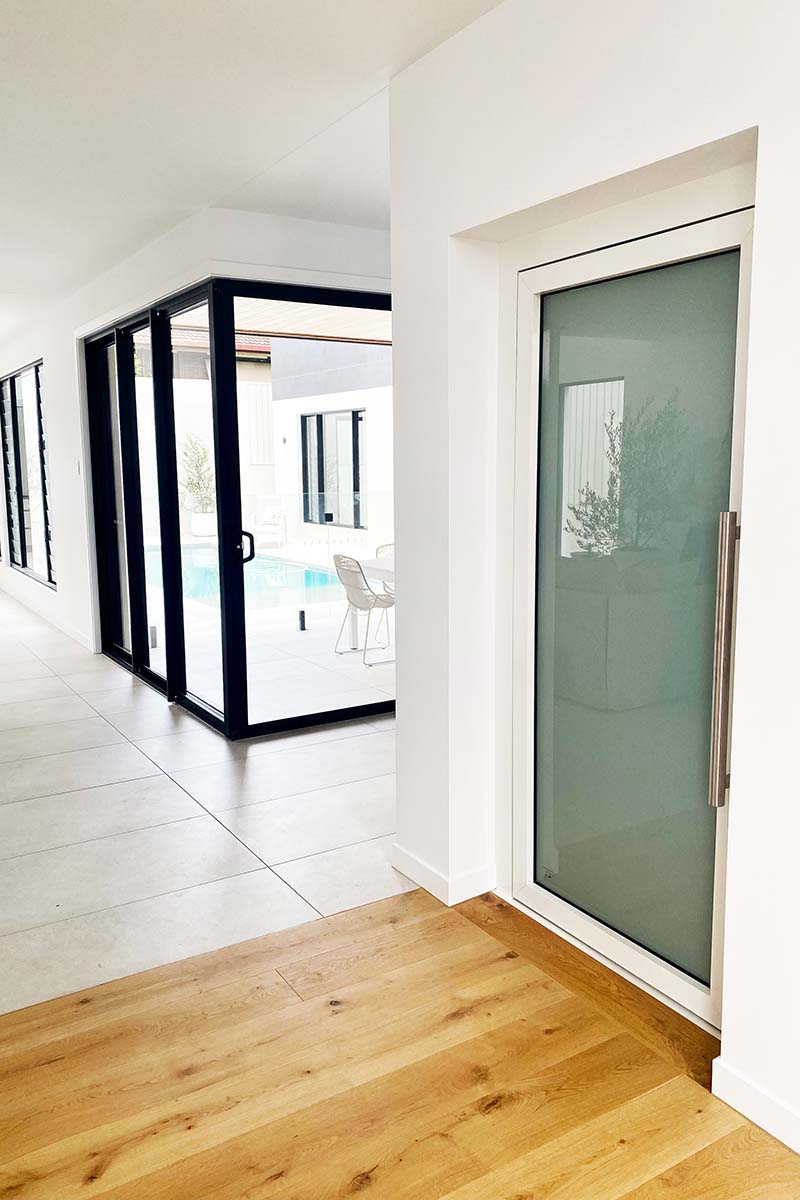

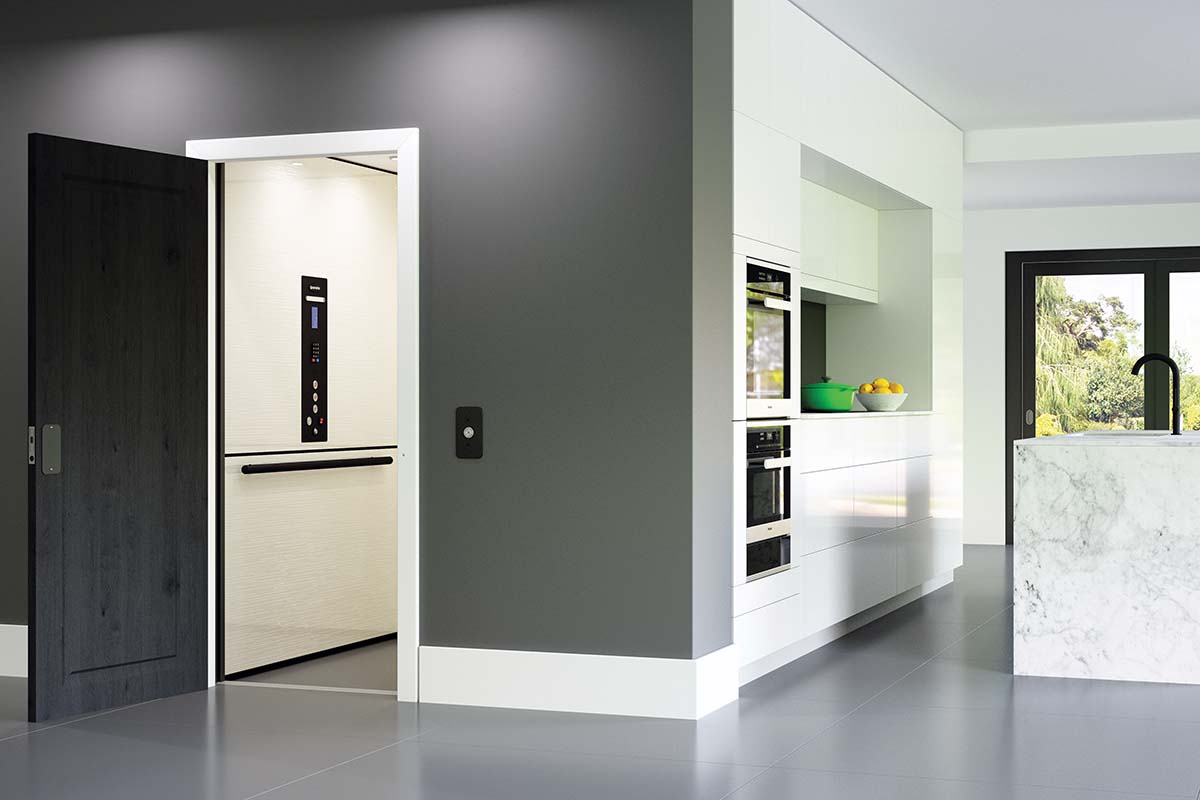

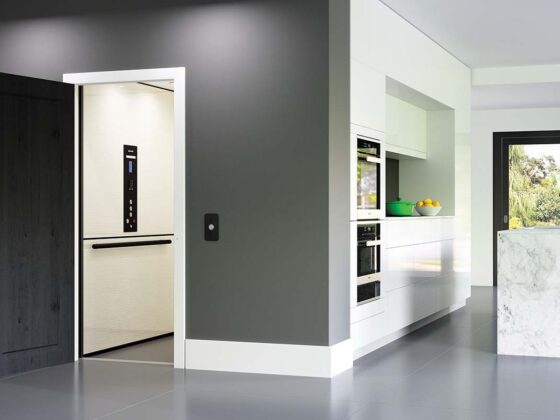

- Swing door options: Swing flush aluminium door in choice of frame colours (black, silver or custom colour), with frosted or clear glass inserts. Swing doors incorporate hall call buttons.

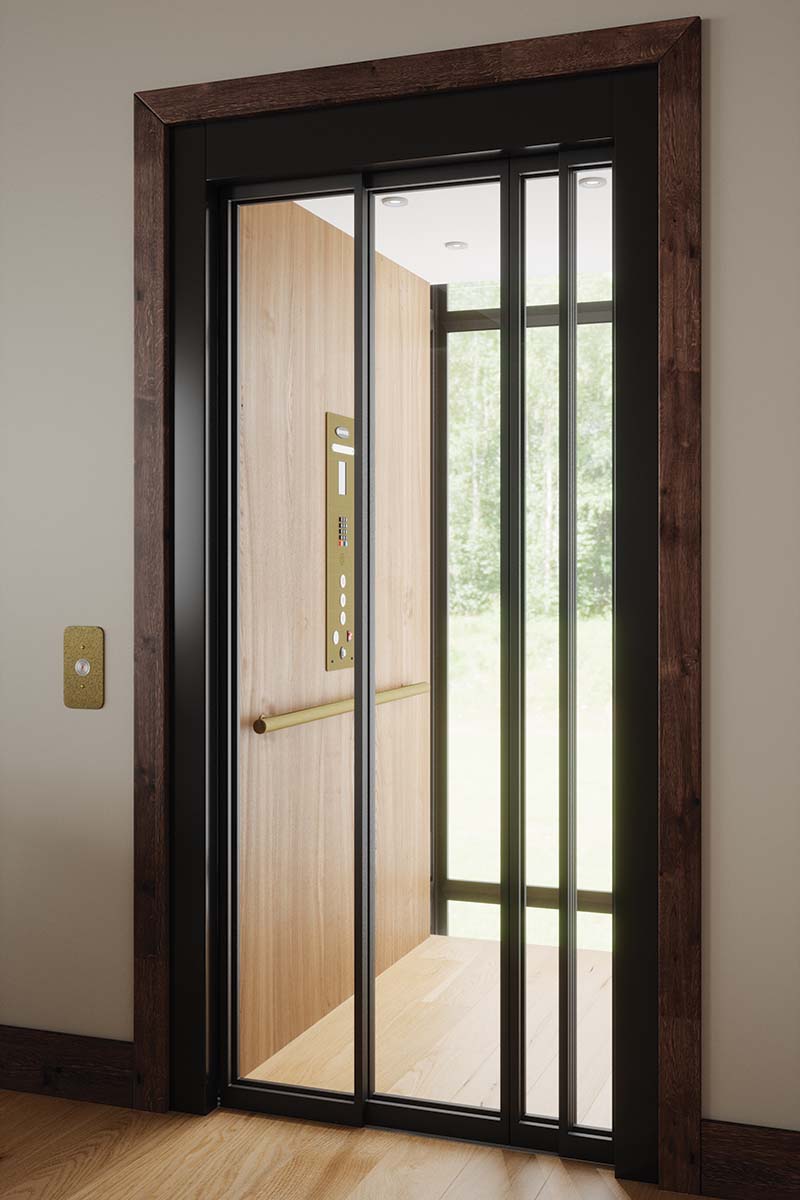

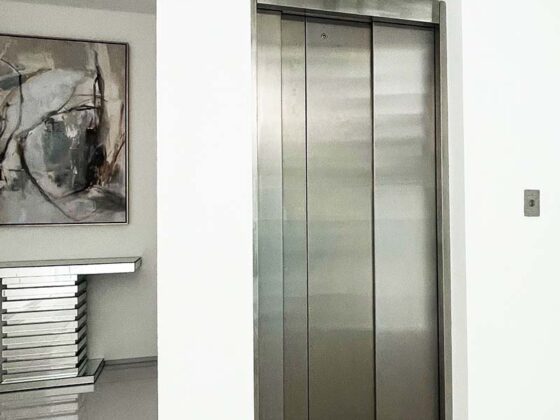

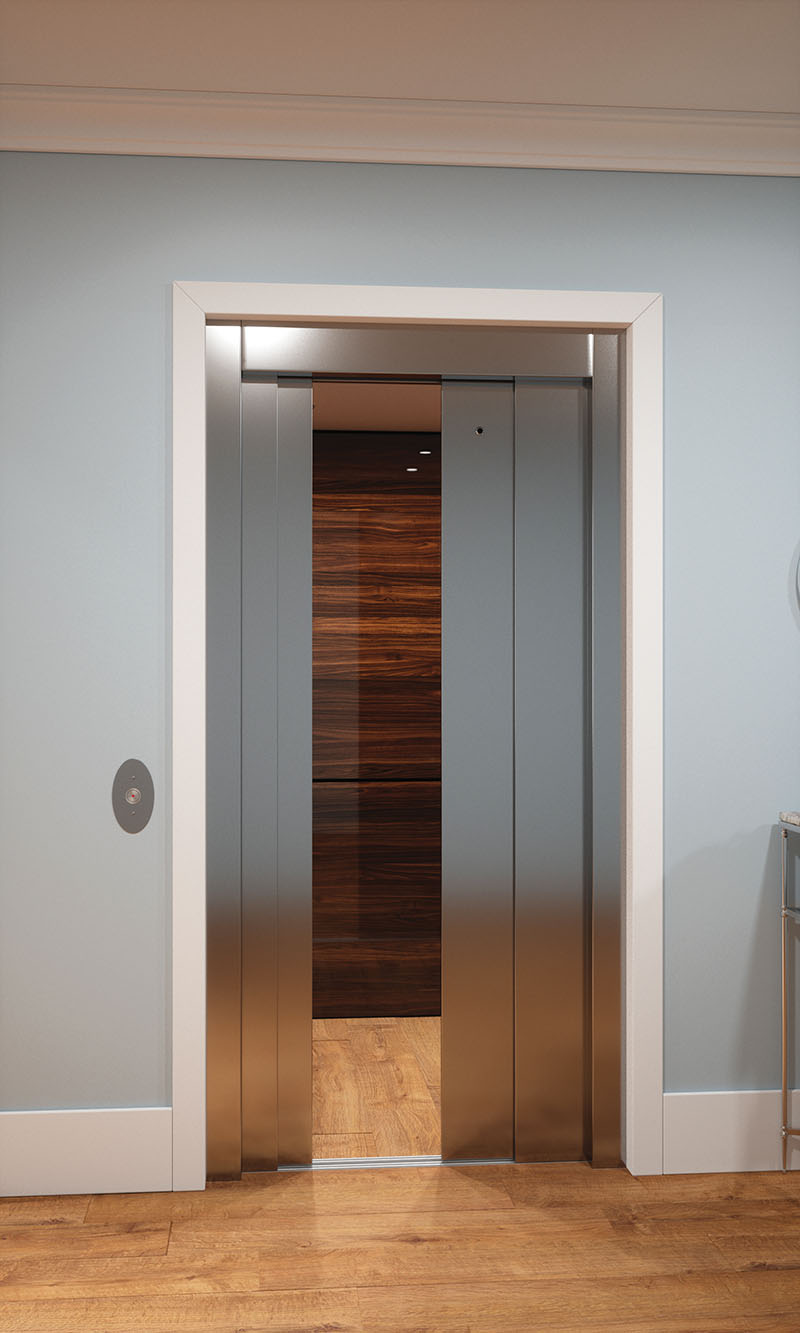

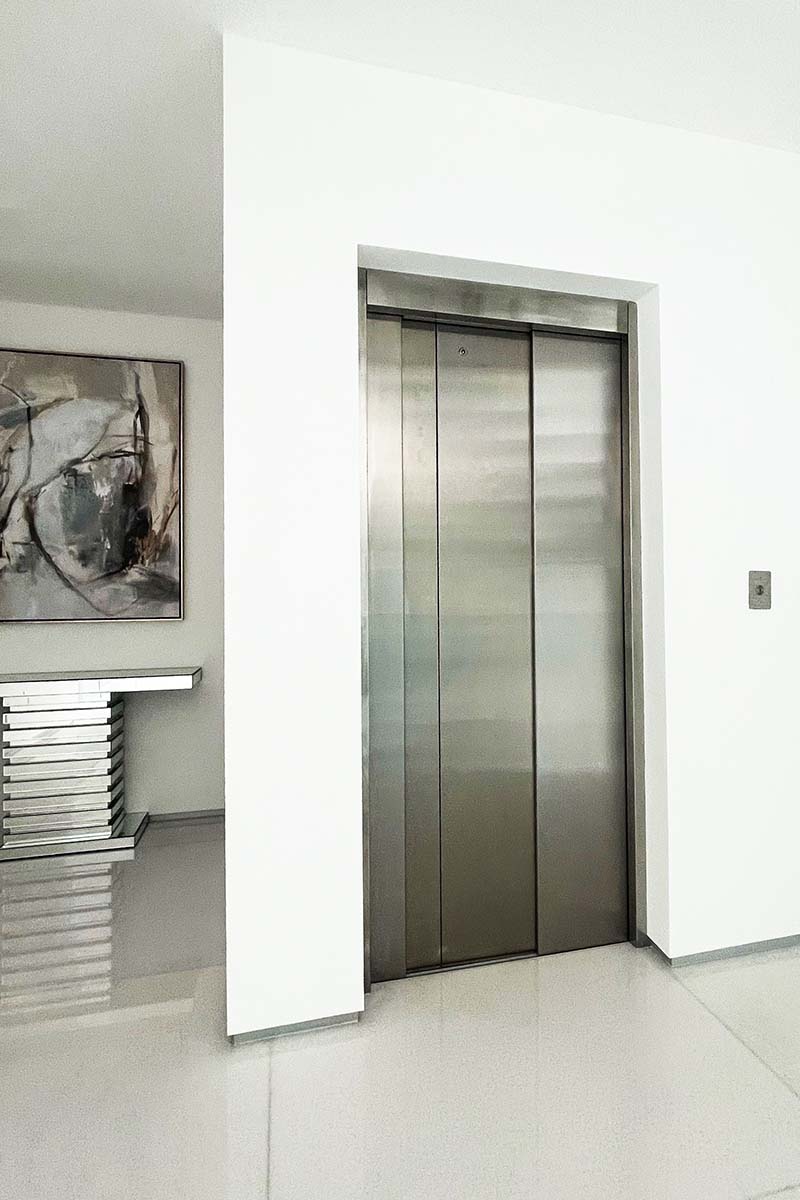

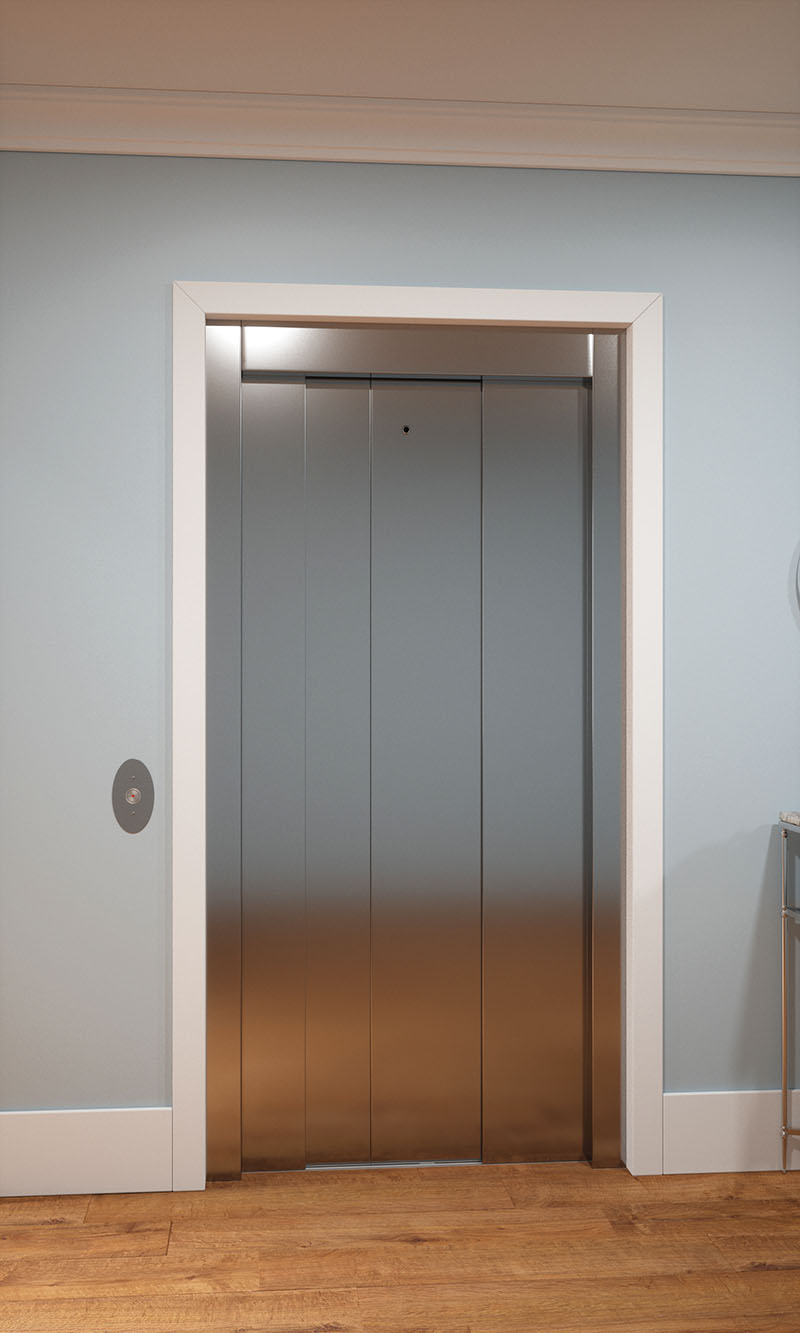

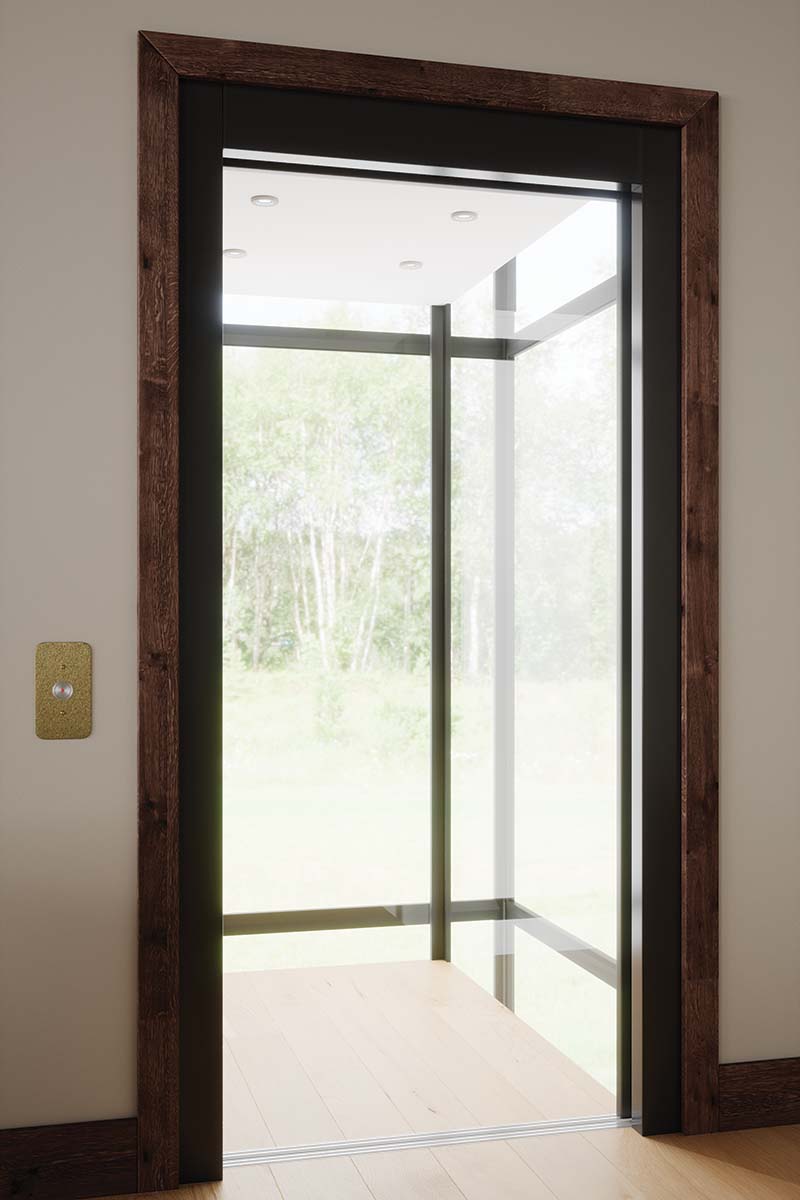

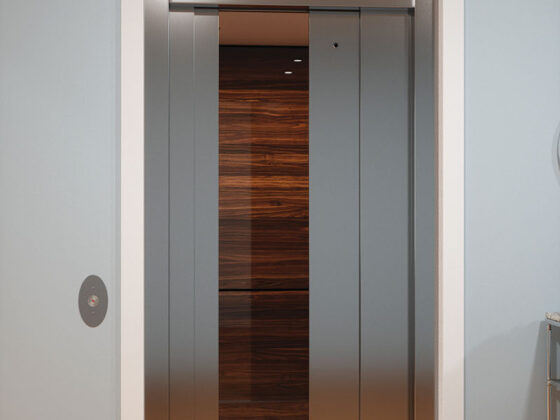

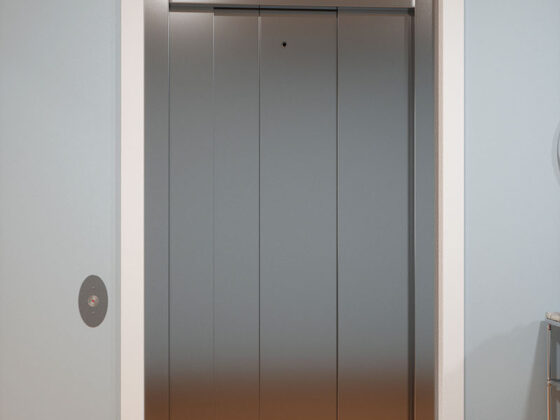

- Savaria Auto Slim doors: 3 panel automatic sliding doors available for cabin and landings in stainless steel, powder coat paint (black, white, or custom colours), or framed glass, Hall call plates: brushed brass, blackened stainless steel, or architectural white, keyed, rectangular or oval design with optional position indicator.
- Other options: Up to 6 stops, keypad telephone in car operating panel, telephone cabinet, alpha-numeric button marking, two-exit opening, buffer springs.
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][vc_column width=”1/3″][impeka_single_image image=”7575″][/vc_column][/vc_row][vc_row section_id=”techspecs”][vc_column][impeka_title heading=”h2″]Technical specifications[/impeka_title][impeka_empty_space][vc_row_inner][vc_column_inner][vc_column_text]
MODEL |
CAB FLOOR AREA |
EXTERIOR DIMENSIONS |
LOAD |
SPEED |
---|---|---|---|---|
Zenith | 914 mm x 1371 mm 914 mm x 1524 mm 1016 mm x 1371 mm Configurations: Type 1, 2, 3, 4, 5 Custom cab sizes also available Optional height: 2133 mm, 2438 mm |
2032 mm (Standard Cab Height) | 635 kg | 0.2 m/s |
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator color=”black” border_width=”2″][impeka_empty_space][vc_row_inner][vc_column_inner width=”1/4″][vc_column_text]
TRAVEL HEIGHT
12.24 m (Max)
18.29 m with variance[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
INSTALLATION
152 mm pit depth
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
STOPS
6
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
POWER SUPPLY
240 volt, single phase, 40 Amps, 50 Hz
[/vc_column_text][/vc_column_inner][/vc_row_inner][impeka_empty_space][vc_separator color=”black” border_width=”2″][impeka_empty_space][vc_row_inner][vc_column_inner width=”1/4″][vc_column_text]
DRIVE SYSTEM
Counterweight traction with geared motor
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
TECHNICAL COMPLIANCE
ASMEA17.1
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
OPERATION
one touch operation
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
MACHINE ROOM
roomless
[/vc_column_text][/vc_column_inner][/vc_row_inner][impeka_empty_space][vc_separator color=”black” border_width=”2″][impeka_empty_space][vc_row_inner][vc_column_inner width=”1/4″][vc_column_text]
USE
residential / indoor
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_column_text]
WARRANTY
36 months parts
