X3

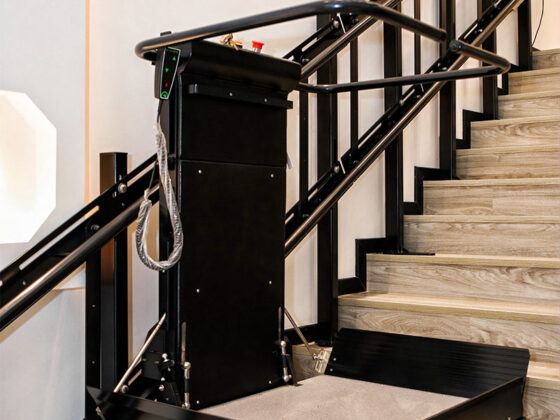

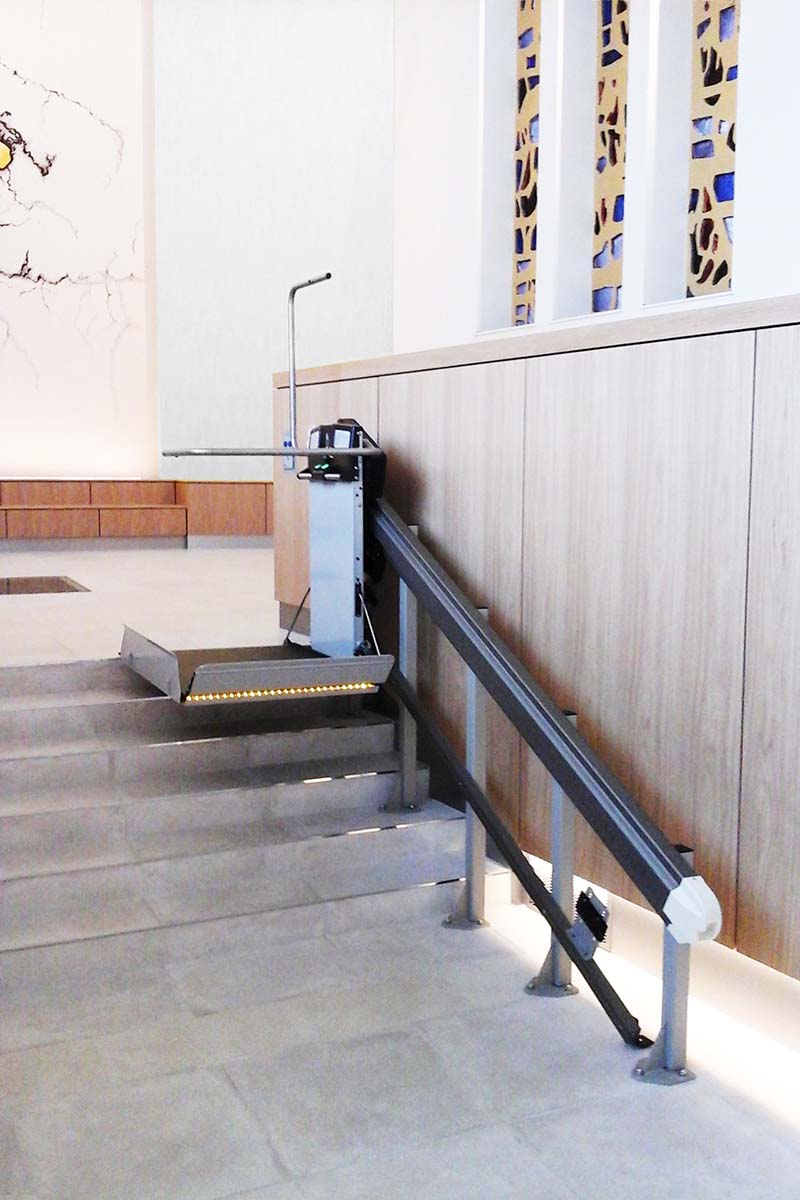

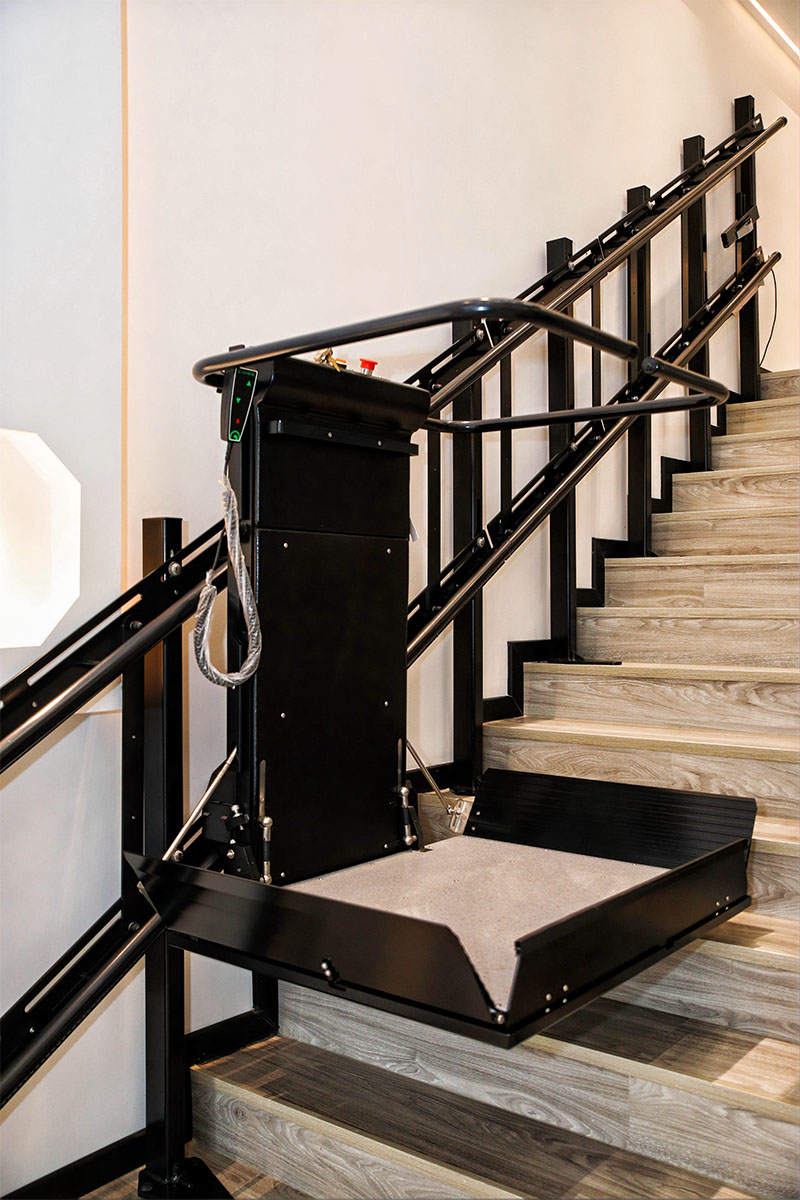

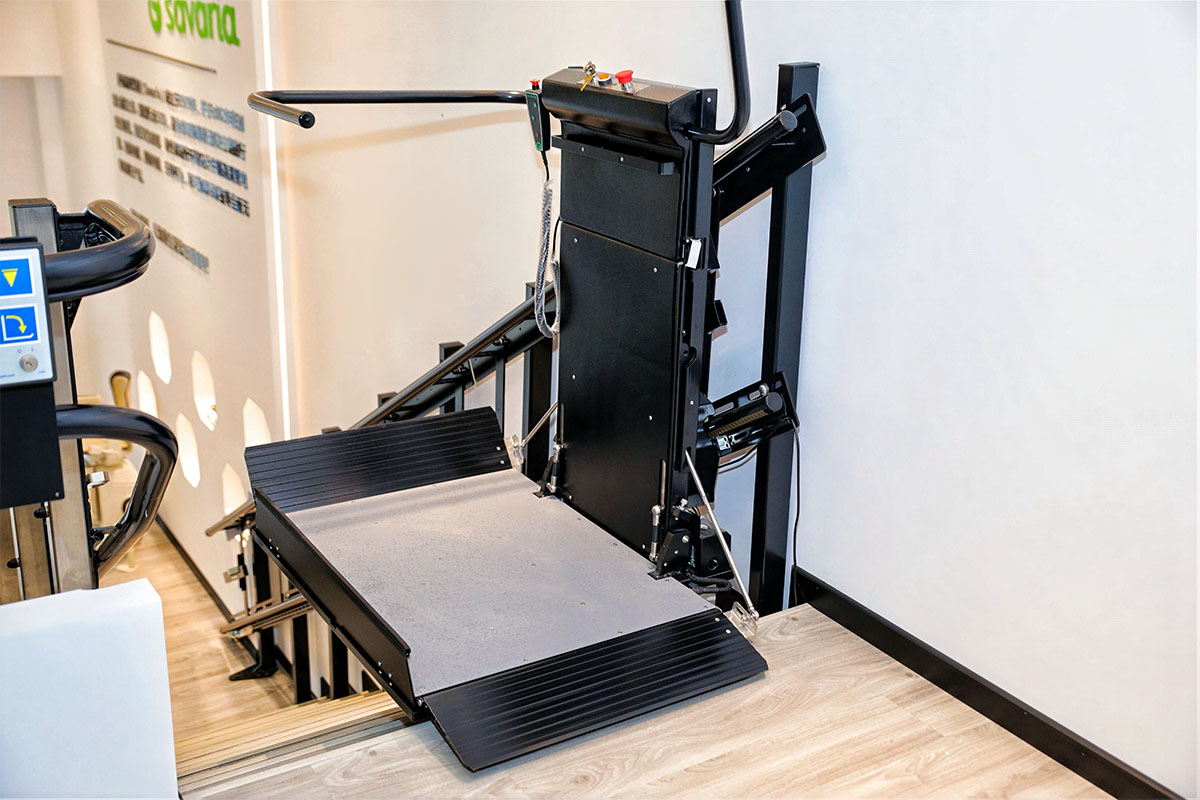

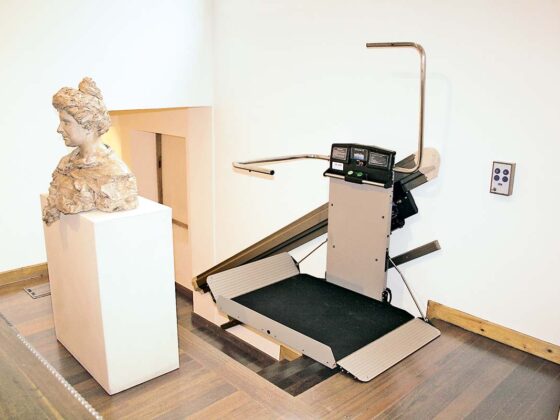

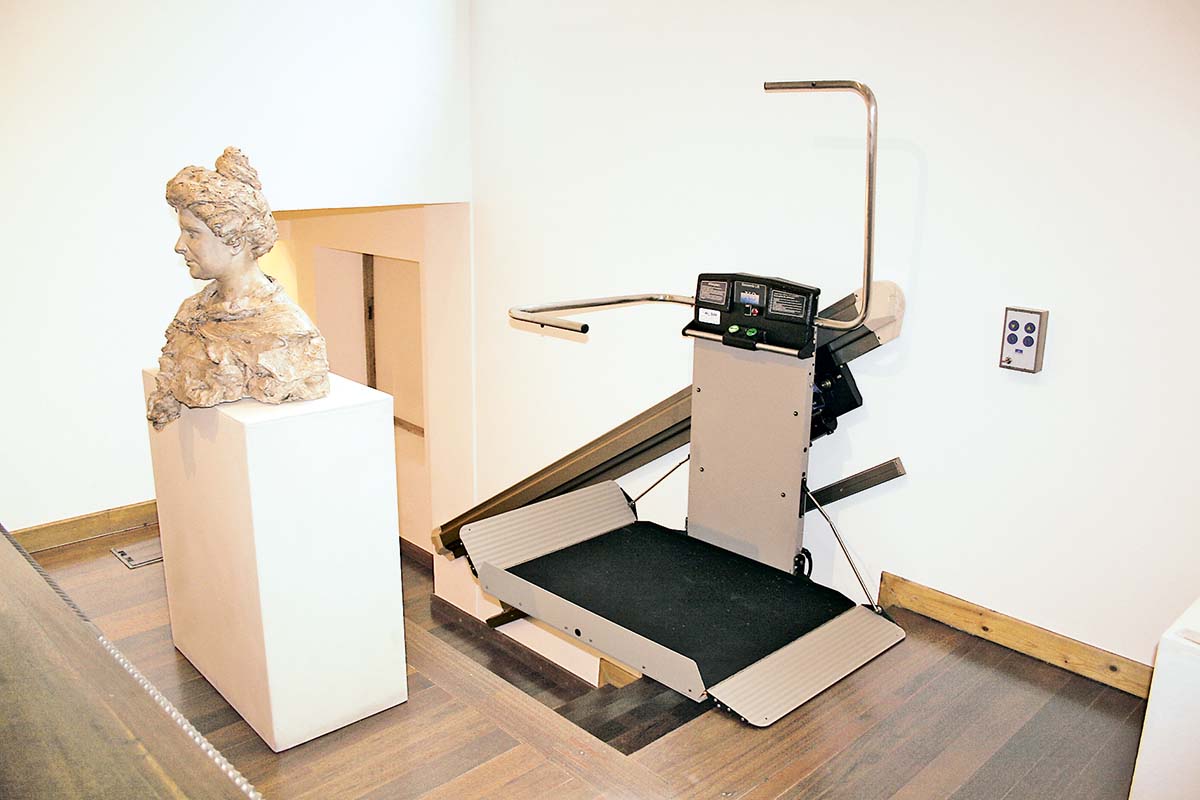

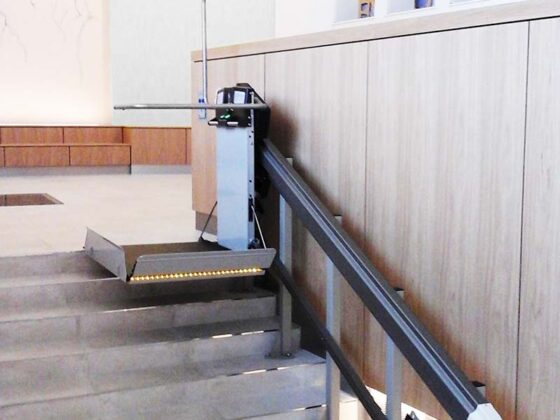

Simple and robust straight inclined platform lift

For residential or commercial

The X3 is a simple and robust inclined platform lift for straight stairs. Featuring a 250 kg load capacity, battery operation and wireless call stations, the X3 is fast and easy to install. The X3 provides excellent value: reliability and safety combined with innovative technology.

For commercial applications, the X3 will feature larger batteries with more capacity, large code-compliant platform, and powered fold and unfold functions.

  • Low cost
  • Reliable
  • Fast/Quick Installation
  • Wireless Call Stations
  • Minimal space requirement
  • Concealed Drive
  • Narrow Profile when Folded
The nuts and bolts
    • A choice of three platform sizes
    • Capacity of 250 kg (550 lbs)
    • Curved safety arms that fold down when stored, reducing overhead clearance requirements
    • Large, easy to use platform control buttons angled towards the passenger
    • Rack & pinion drive system with re-chargeable battery operation
    • Safety sensors – under the platform and on the leading ramp
    • Manual fold and unfold
    • Passenger grab bar
    • Platform emergency stop button

    How to use this wheelchair lift

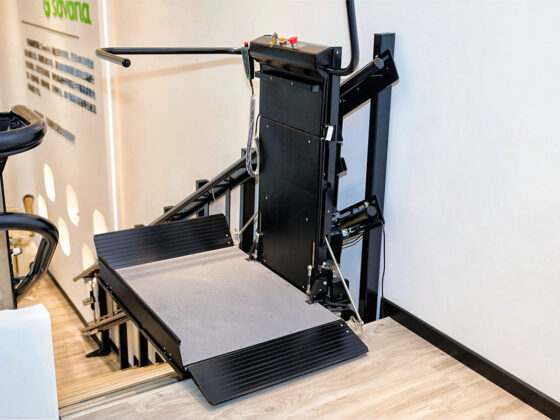

    • Fully automatic platform with powered ramps and arms.
    • Side load ramp, allowing for easier boarding in small lower landing spaces.
    • Attendant remote control, allowing the lift to be operated by someone other than the passenger.
    • Folding seat for passengers who are not in a wheelchair, but have difficulty using stairs.
    • Support towers for stairways without an adjacent wall to attach to.
    • Wireless call station wall controls allow for fast and clean installation.
  • The most obvious benefit is accessibility. Transform inaccessible space into usable area for people with disabilities and those who have difficulty using stairs.

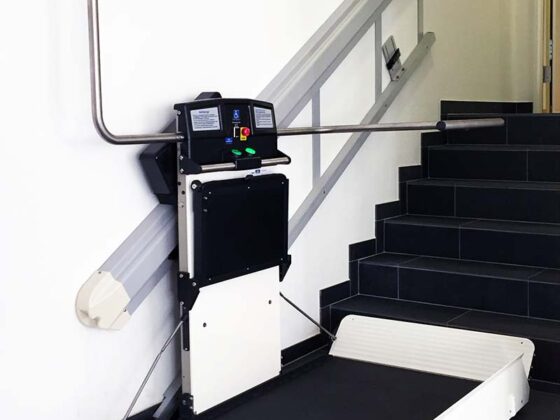

    • Ease of Use: The platform controls are large and easy to use. The buttons are 50.8 mm (2″) in diameter, illuminated and protrude from the surrounding surfaces. This makes the X3 easy to use for people with limited dexterity in their hands. The buttons are also positioned on an angle towards the user.
    • The X3 is available with a fully automatic folding platform, which includes powered boarding ramps and barrier arms.
    • In many residential applications, wall mounted call station controls are not required. However, when they are required, the call stations for the X3 are wireless. This allows for the controls to be installed on the wall without the need to run conduit from the lift to the controls. The installation is cleaner, simpler and faster.
    • Cost-effective: The cost of the X3 inclined platform lift is significantly lower than many other accessibility alternatives.
    • Convenience: When stairs in a home or office become a challenge for people, sometimes they must be hand carried or lifted in their wheelchair step by step. Not only does this contravene public accessibility requirements, this can be extremely dangerous for everyone involved. The installation of an X3 alleviates the difficulties of moving up and down the stairs and provides a safe, code-compliant and efficient method of travel to another level.

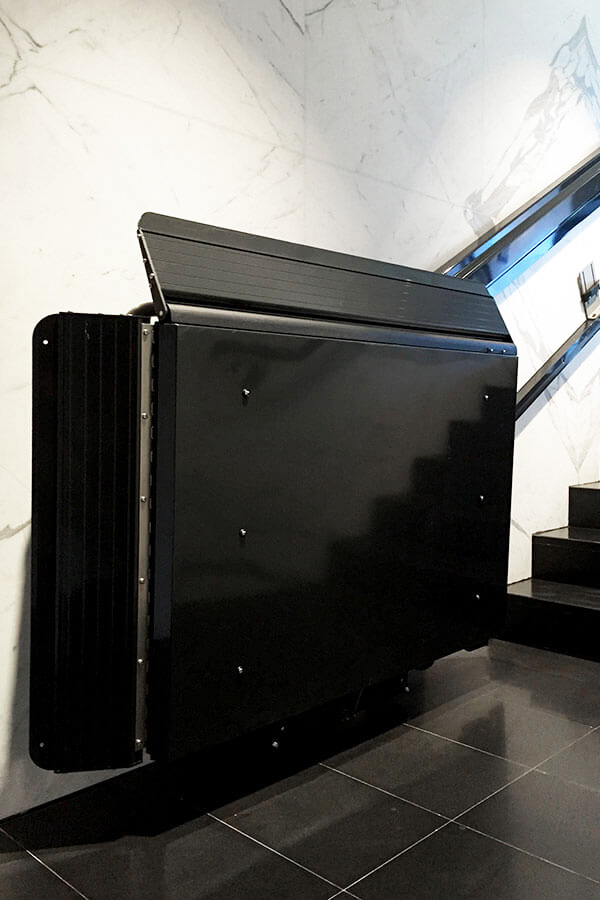

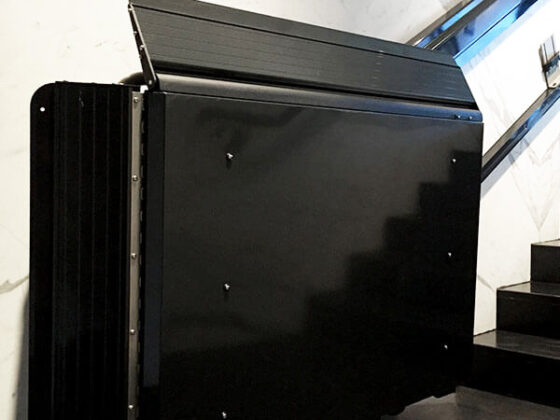

    • Compact and Space Saving: When folded, the X3 takes up a minimal amount of space and will not affect other users of the stairway.
    • Safety: The X3 is equipped with standard safety features including curved safety arms, multiple safety sensors, and an emergency stop switch.
    • Short Delivery & Installation Time: Standardised components allow Savaria to provide you with a lift configured to suit your stairway with a short delivery time. Installation is usually accomplished within a single day and does not typically require any modifications to existing structures.
    • Service: Maintenance of any kind of equipment is crucial to ensure continued service. Your local authorised Savaria representative has the training, expertise and the spare parts to keep your X3 operating properly for years.
    • Platform: A variety of platform sizes available
    • Power Requirements: 120 VAC provides power to battery charger
    • Applications: Residential or Commercial. Commercial applications require conformance to local codes.
    • Rated Load: 250 kg (550 lbs)
    • Drive System: Rack & Pinion
    • Speed: 4 m/min (13 ft/min)
    • Platform Controls: Keyless with continuous pressure directional buttons, equipped with emergency stop switch
    • Overspeed Safety: On board the platform carriage
    • Safety: Emergency manual lowering and folding | Under platform obstruction detection | Bi-directional ramp sensing | Curved safety arms | Pedestrian safety lights.
    • Finishes: Champagne anodized extruded aluminum rails, Optional RAL colours
    • Optional Features: Wireless call stations, keyless (standard) or keyed with continuous pressure switches | Fully powered platform fold and unfold with powered ramps and arms | Attendant remote control | Fold-down seat with seat belt | Support towers | Keyed platform controls | Vandal resistant platform storage | Keyed platform lock
  • Please note, product details for Asia may vary. Please consult our sales offices for complete specifications.

Demand the best in accessibility
