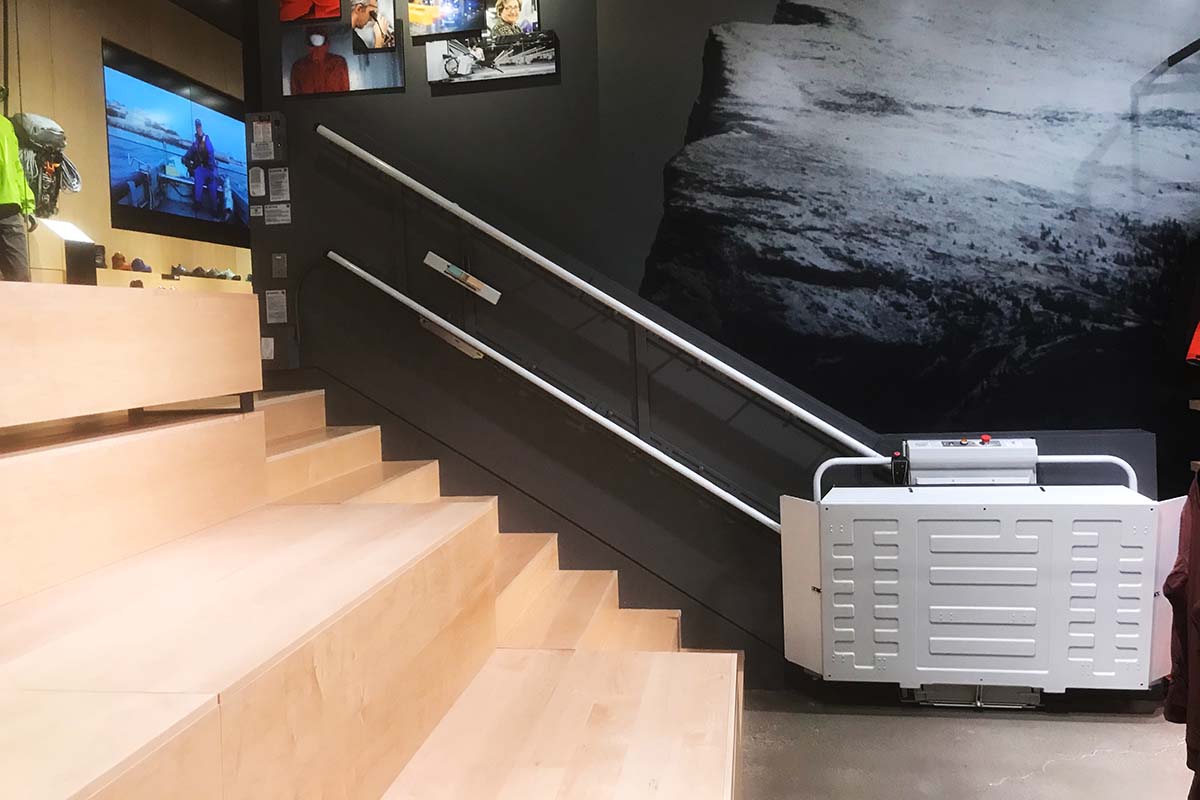

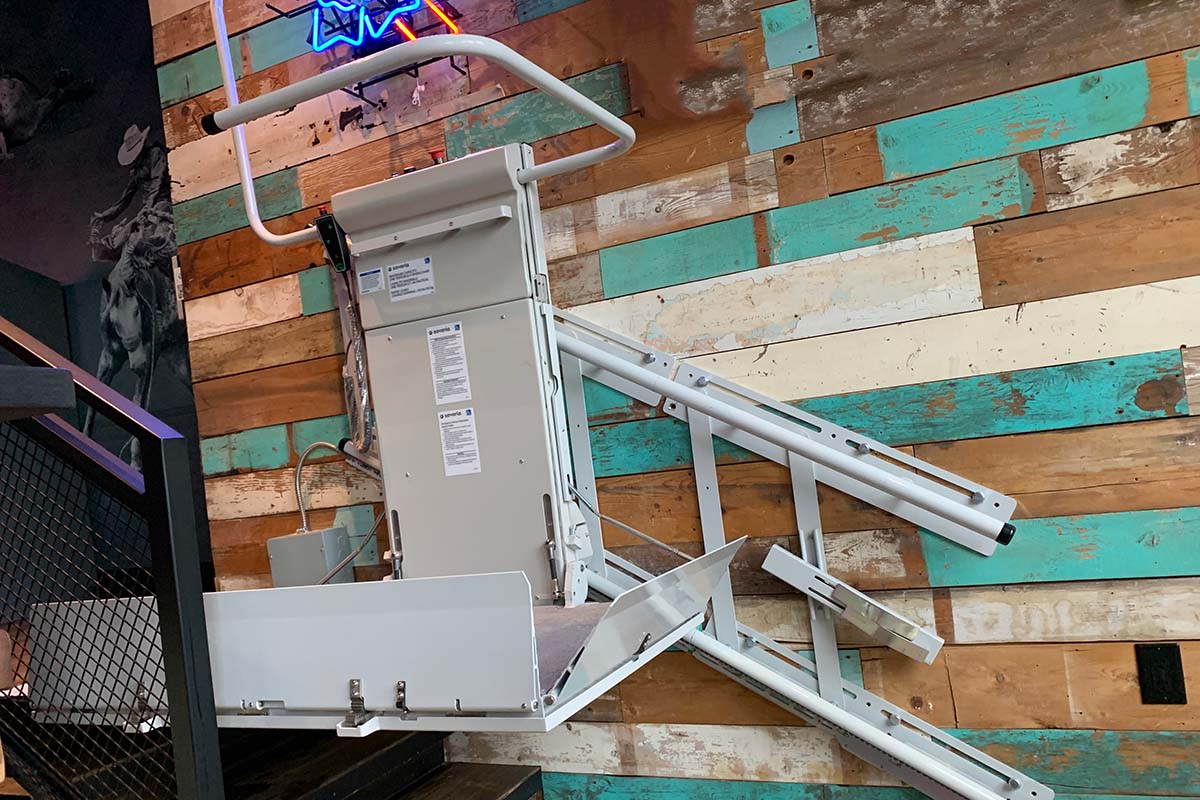

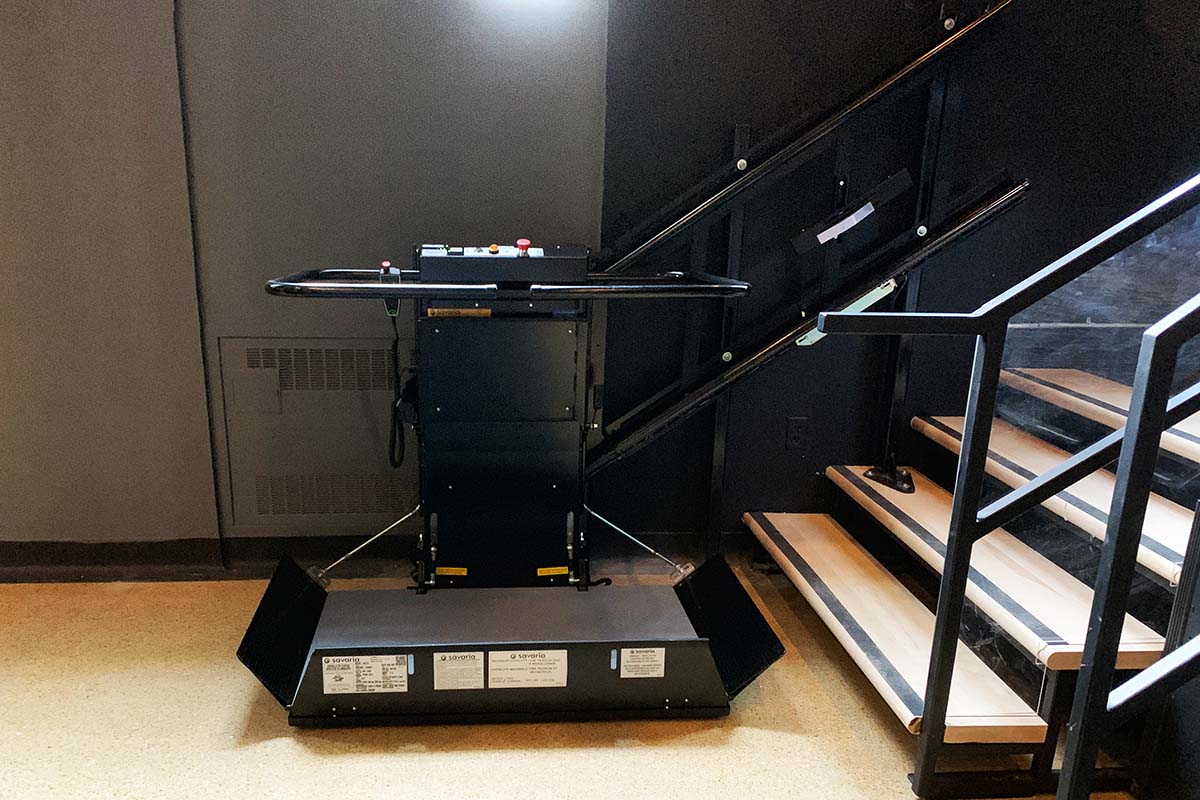

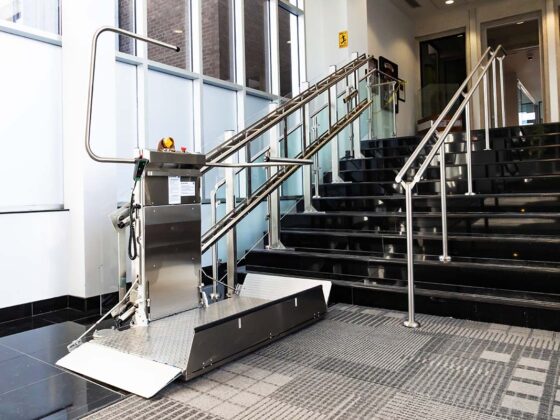

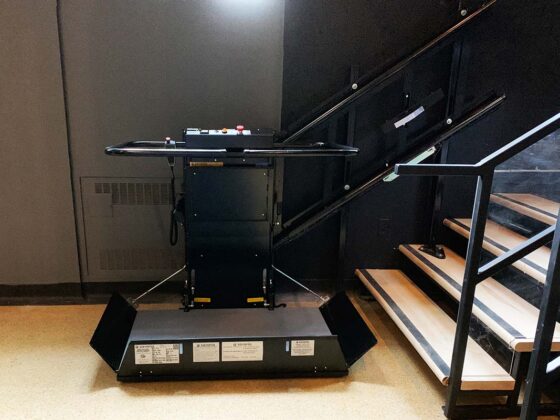

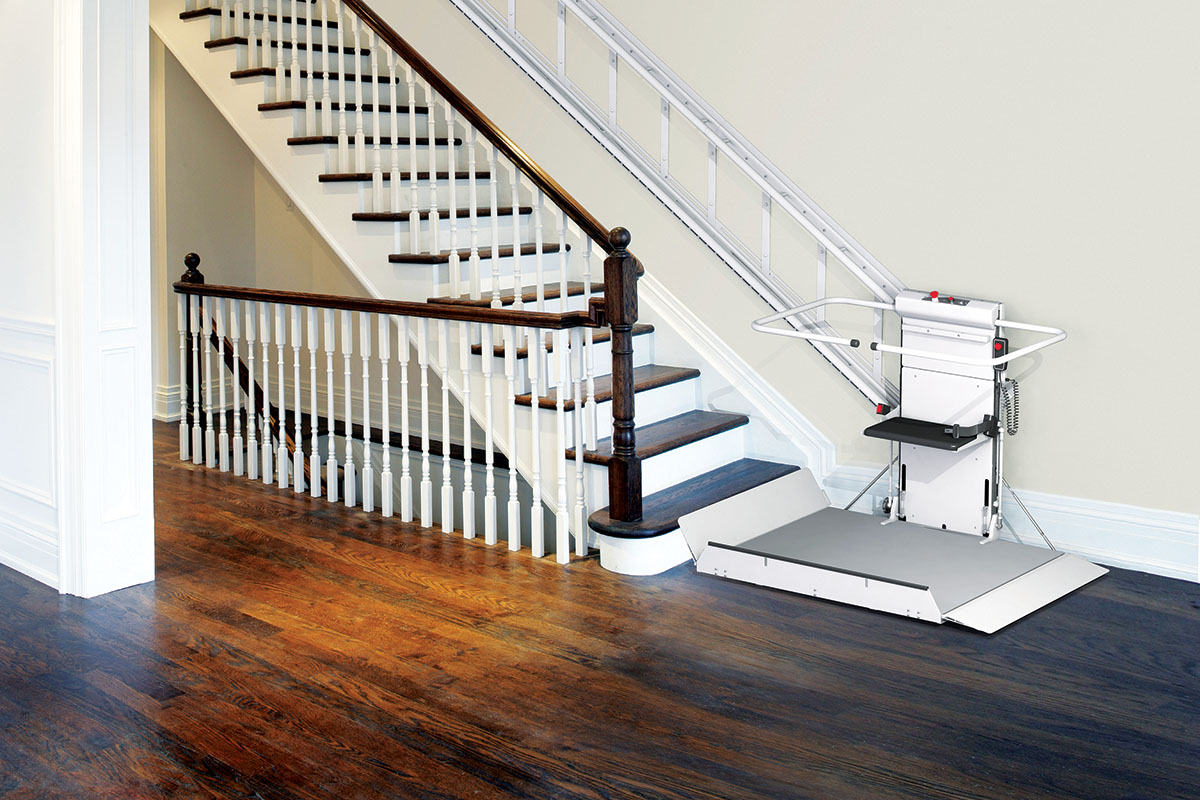

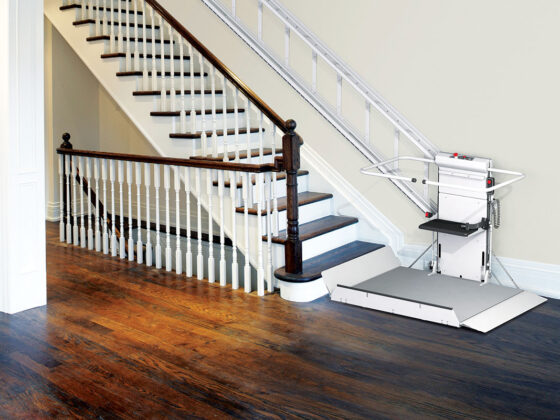

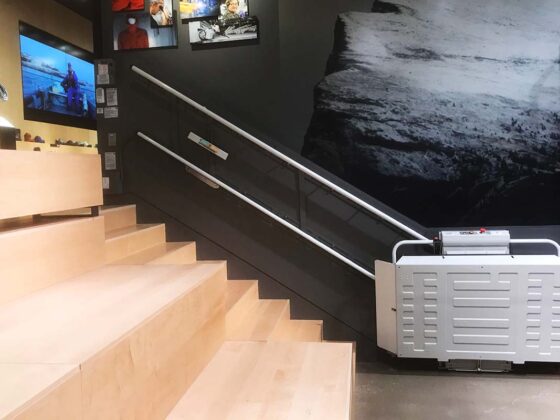

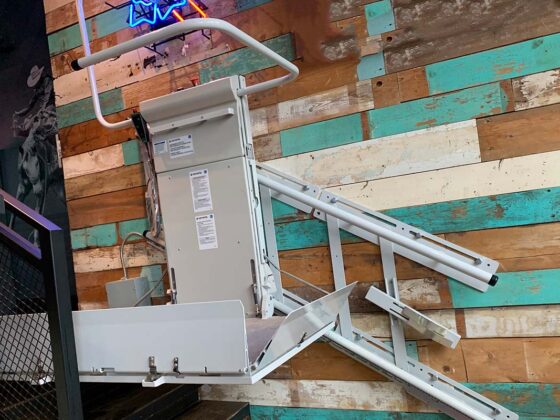

The Delta inclined platform lift provides wheelchair access over straight stairs as it travels along a modular guide rail system. When not in use, the unit folds compactly against the wall, providing maximum access to the stairs. The Delta lift is a popular choice for community centres, schools and homes as it requires minimal construction for installation.

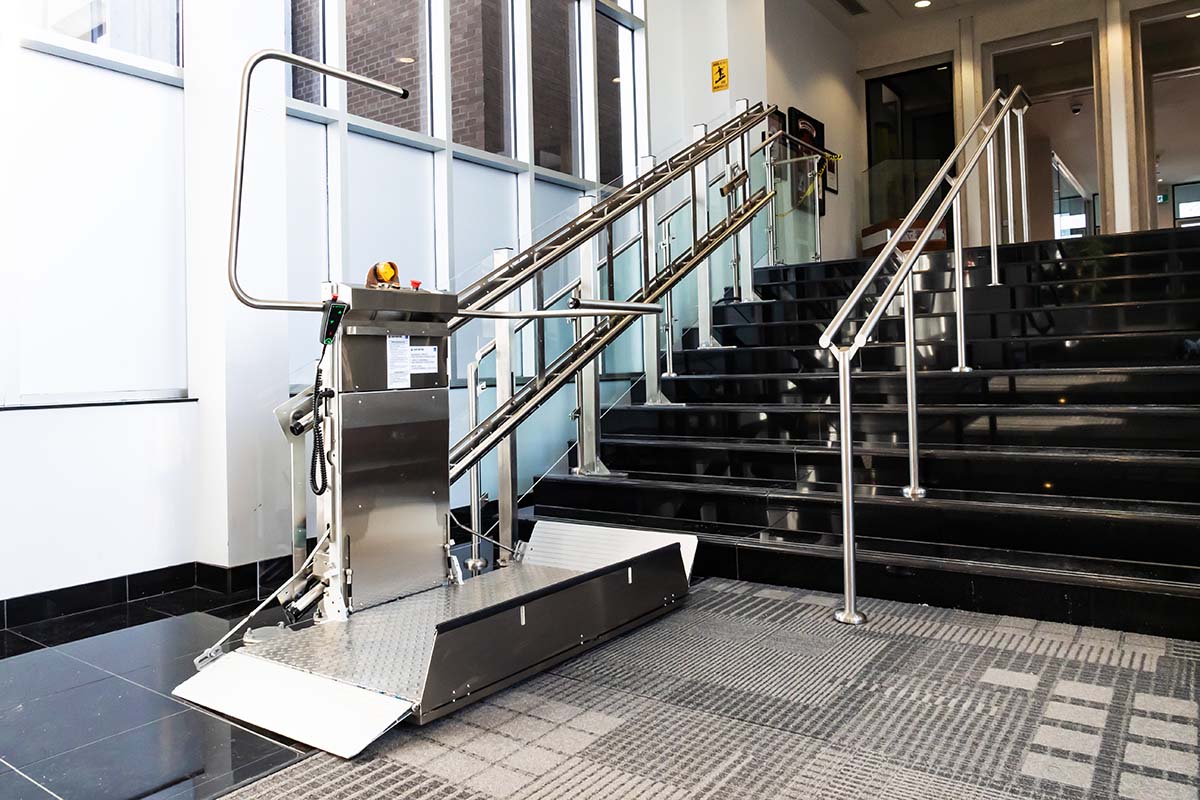

Battery operated with charging stations located at the top and bottom of the stairs, allowing the lift to continue operation even through a power failure. Choose from four platform sizes and select options such as a folding seat, automatic folding/unfolding, or a public building package option for commercial applications.
- Provides access over a single flight of stairs in residential or commercial settings
- Carries a passenger in a wheelchair or seated passenger; 250 kg capacity

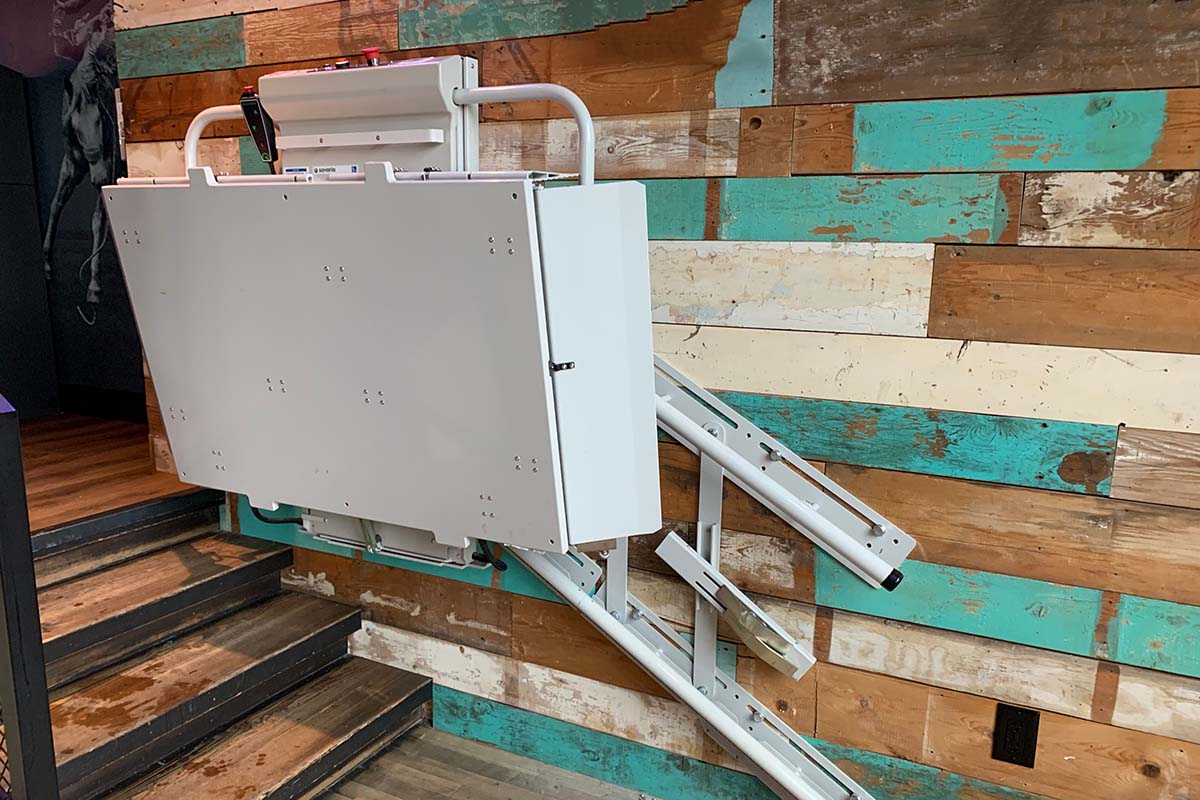

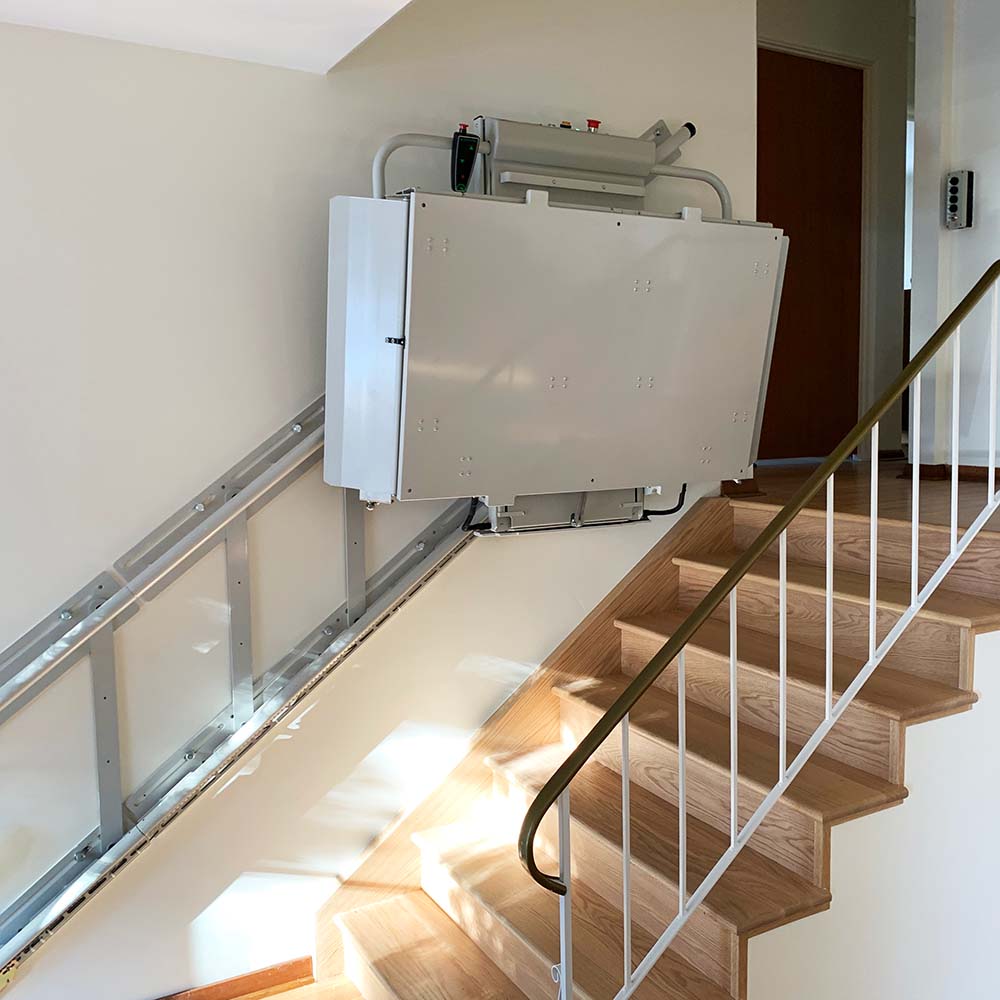

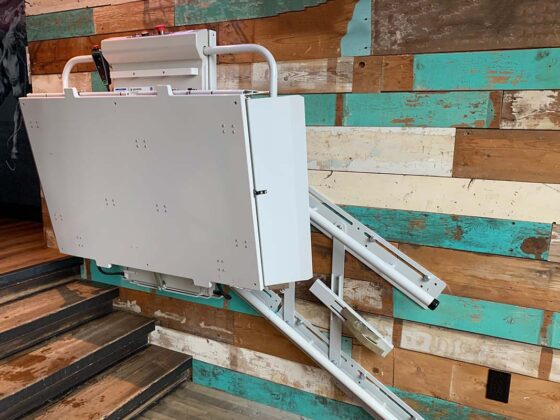

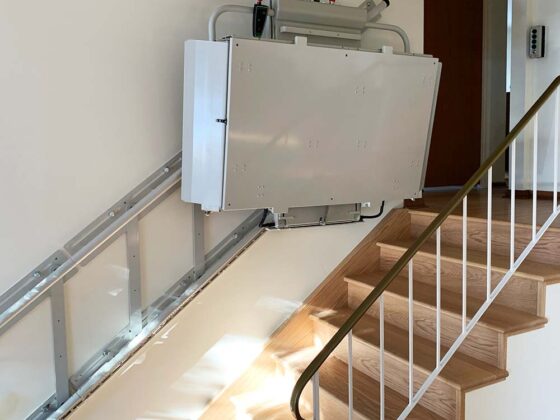

- Platform folds up to keep stairs unobstructed; 4 sizes available
- Battery powered with motor onboard the unit; no machine room needed, and can be operated during a power outage
- For indoor and outdoor use (moderate climates only)
Technical specifications
MODEL |
CAB FLOOR AREA |
EXTERIOR DIMENSIONS |
LOAD |
SPEED |
|---|---|---|---|---|
| Delta | 673 mm x 914 mm 686 mm x 914 mm 775 mm x 1250 mm 720 mm x 900 mm 724 mm x 1118 mm |
n/a | 250 kg | 0.075-0.1 m/s (depending on angle of stairs) |
TRAVEL HEIGHT
24 m (Max)
INSTALLATION
n/a
STOPS
single flight of stairs
POWER SUPPLY
24 volts DC (battery system), 120V AC for charger
DRIVE SYSTEM
0.5 kW (0.66 hp)
TECHNICAL COMPLIANCE
ASME A18.1-2003
OPERATION
constant pressure
MACHINE ROOM
roomless
USE
residential / commercial
indoor / outdoor
WARRANTY
36 months parts
Documents
Please note, product details for Asia may vary. Please consult our sales offices for complete specifications.
