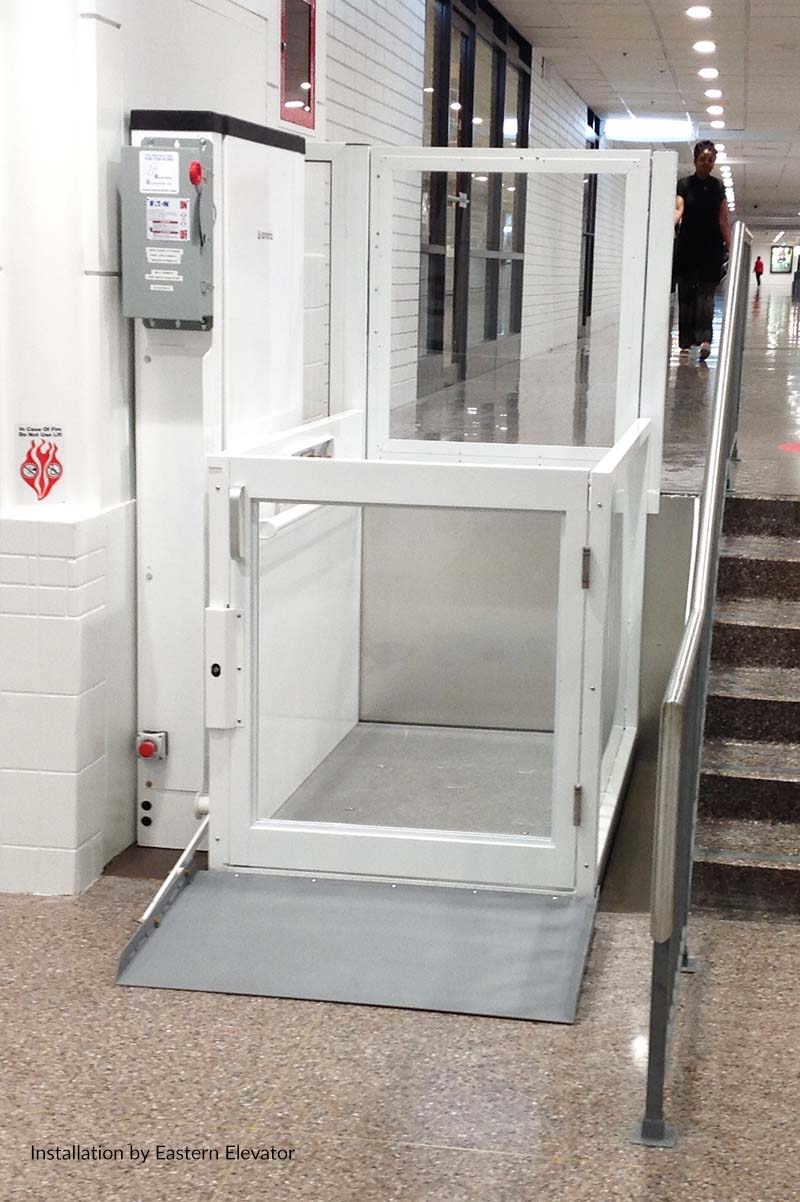

V-1504

From schools to upscale lobbies

The V-1504 vertical platform lift offers wheelchair accessibility for home and public use. The V-1504 is versatile and comes enclosed or as luxury lift in its Prestige and Lux versions.

Swift 0.1 m/s hydraulic lift to carry a wheelchair and passenger up to 4 stops over 7 m of travel (code permitting)

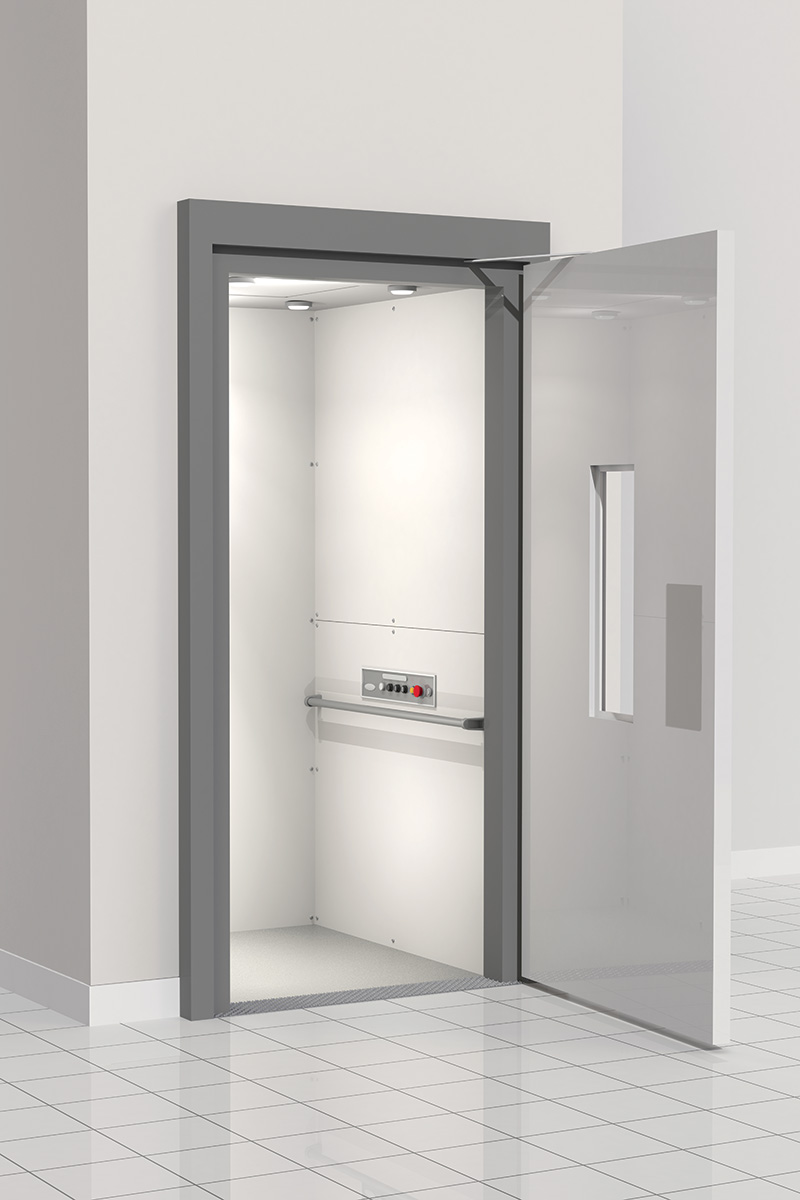

Can be configured to be unenclosed for shorter travel or enclosed within a shaft or enclosure by manufacturer for taller travels
Array of options to customise your lift. From optional paint colours, doors and gates available with aluminium, acrylic or glass inserts, and with automatic opener.
Code compliant or custom platform sizes; same-side, straight-through or 90º entry and exit
Drive system is located in tower so no machine room needed; operated by constant pressure controls
For residential or commercial access; 340 kg capacity
Suitable for indoor or outdoor use

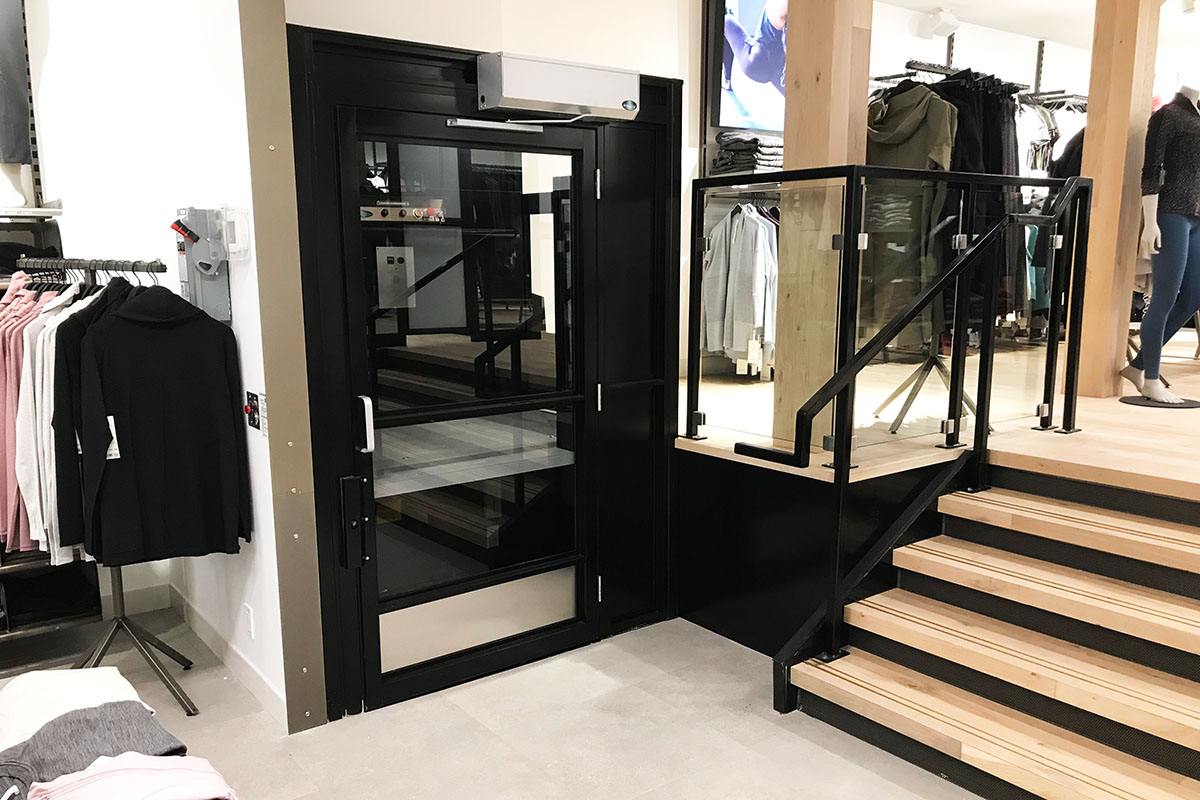

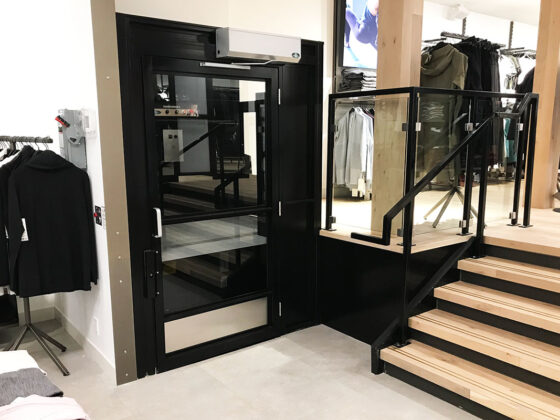

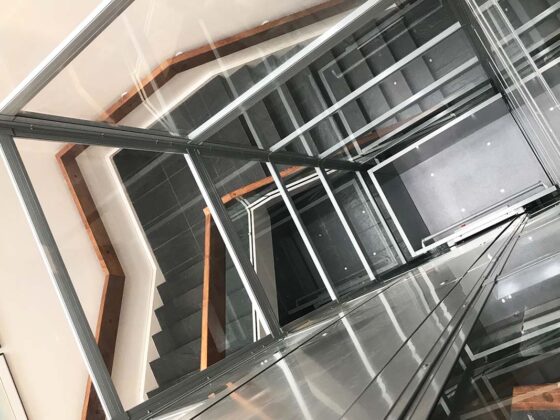

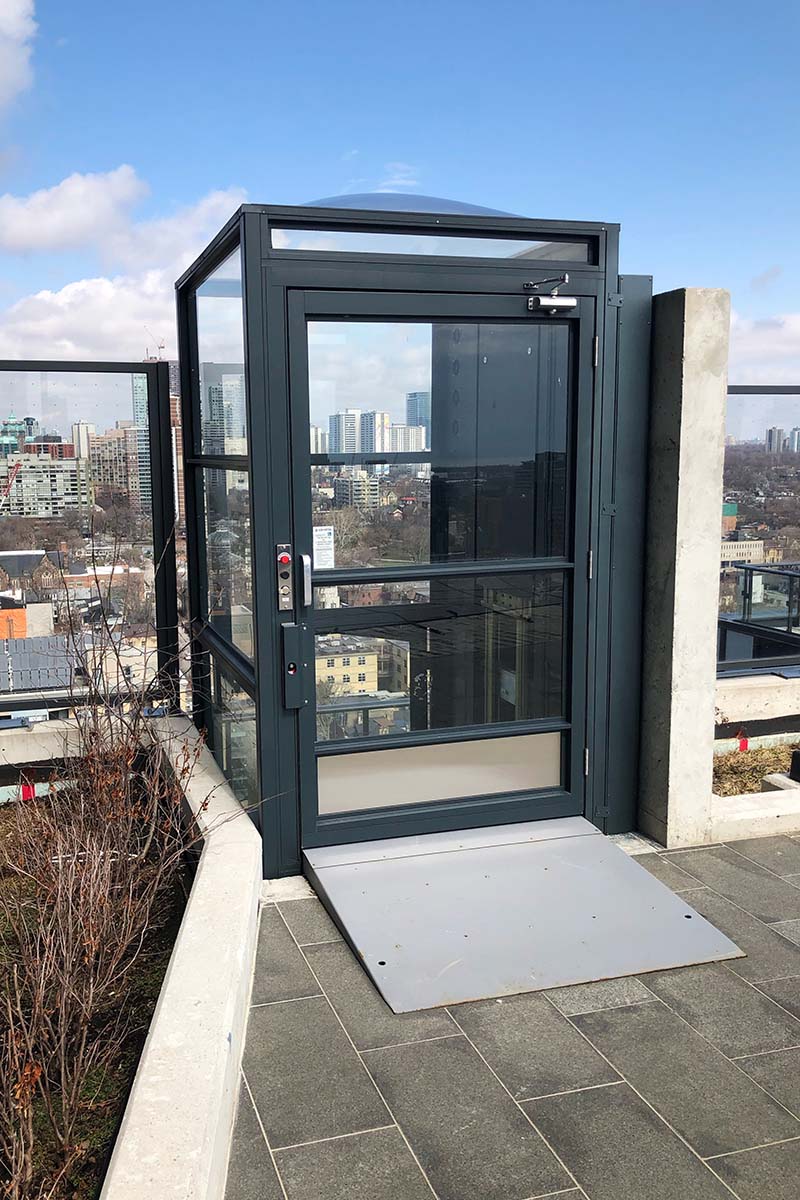

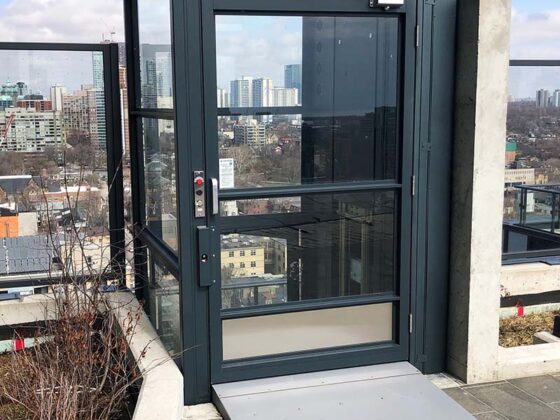

Also available as V-1504 Enclosure

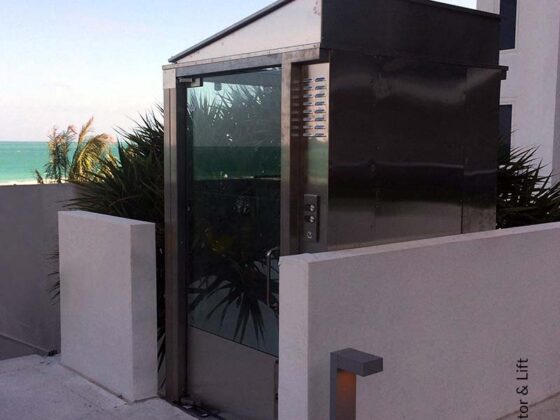

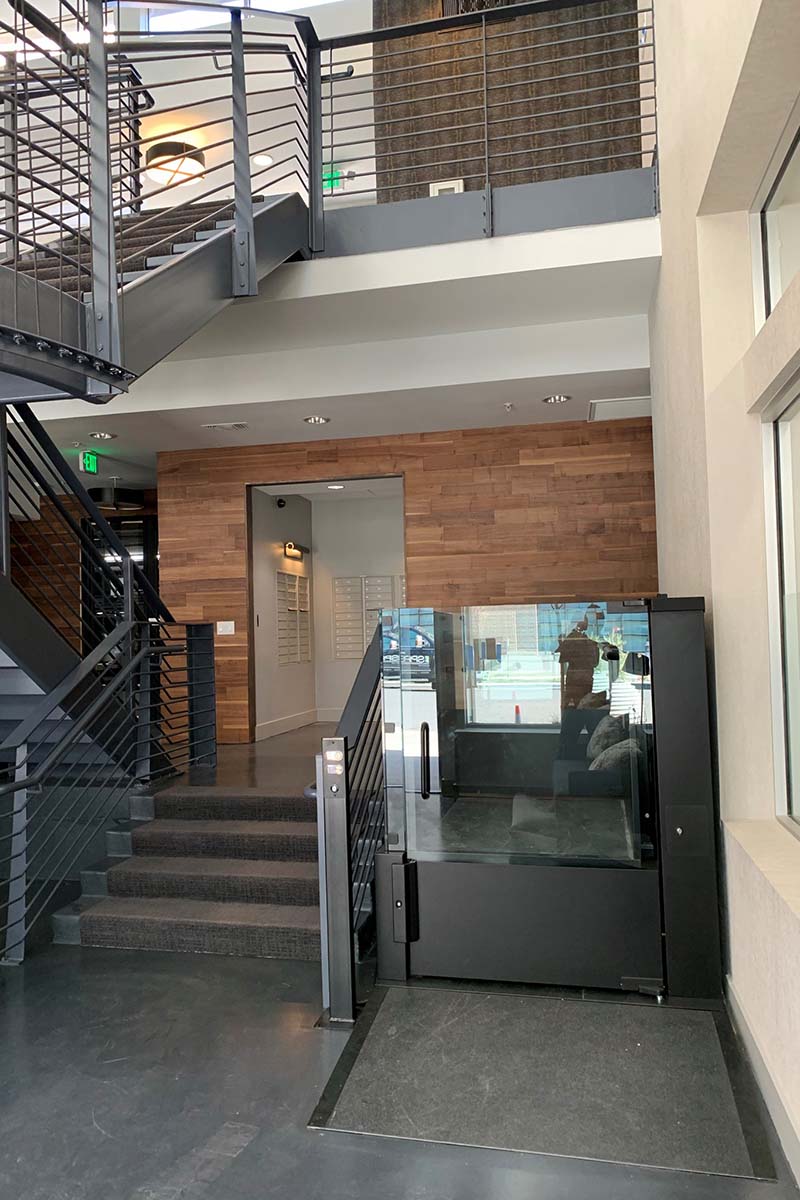

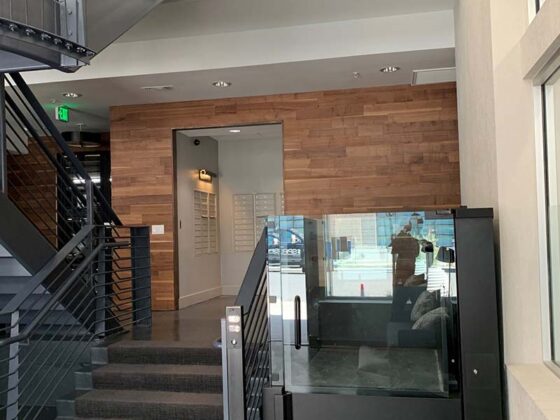

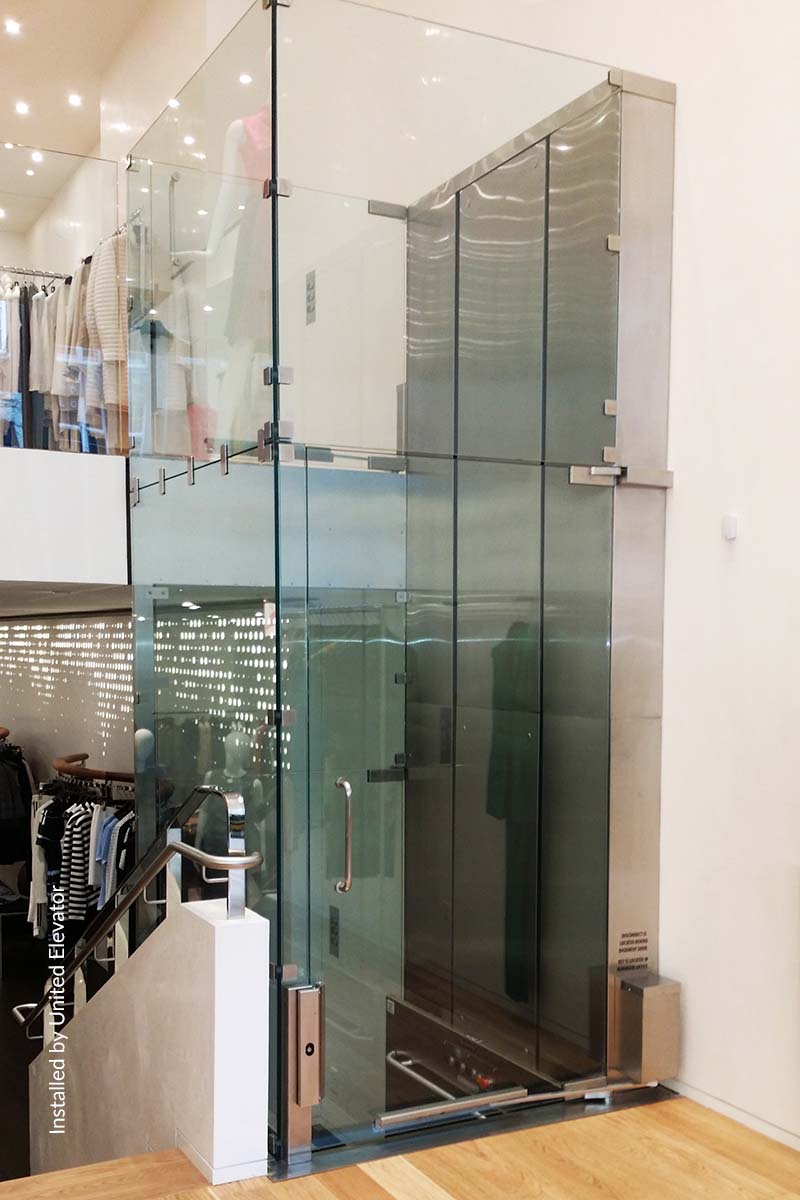

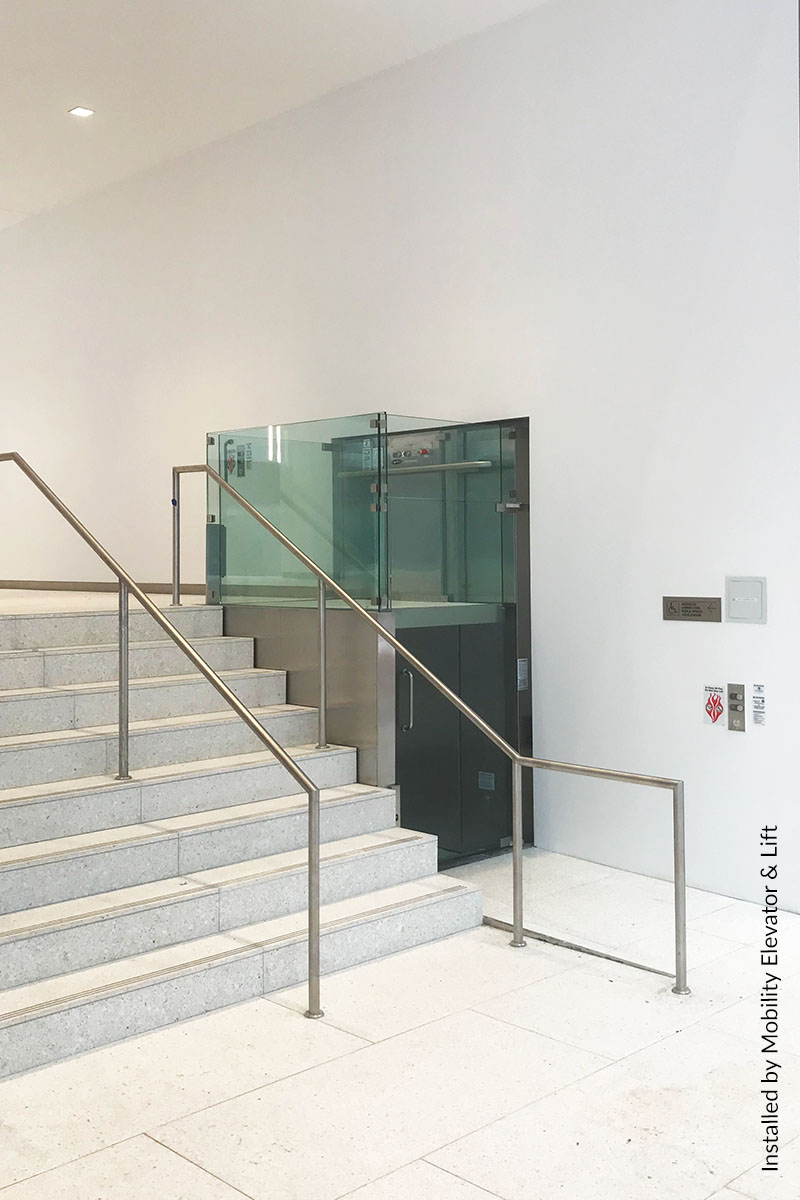

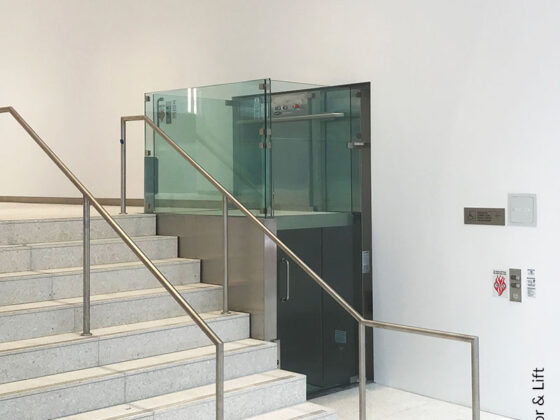

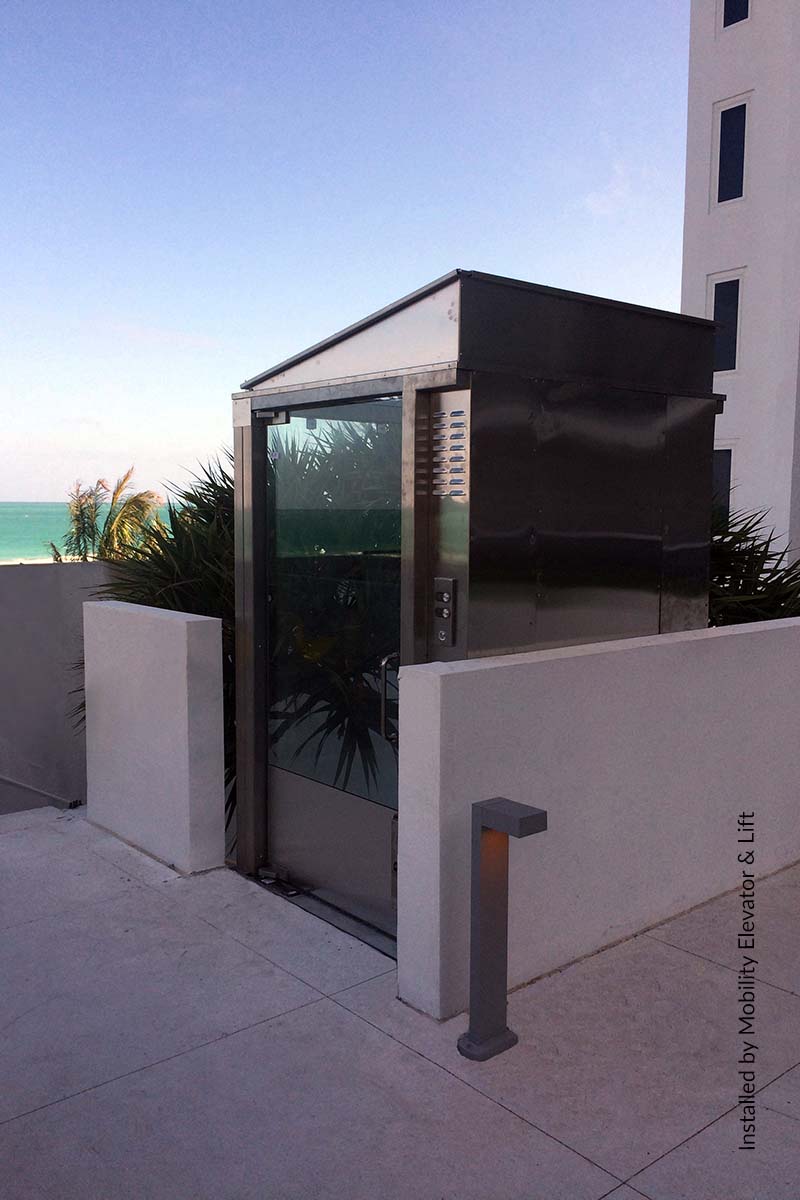

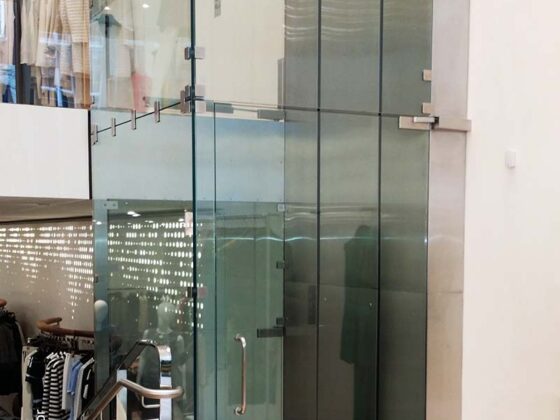

Prestige version features 1.27 cm structural tempered glass with no visible frame for indoor or commercial projects.
- It carries a wheelchair and passenger between 2 stops, up to 182 cm of travel (frameless for indoor-use)
- Framed version available for 3-stops and up to 3.65 m of travel
- Doors and gates available, in stainless steel or optional paint colours for tower and platform

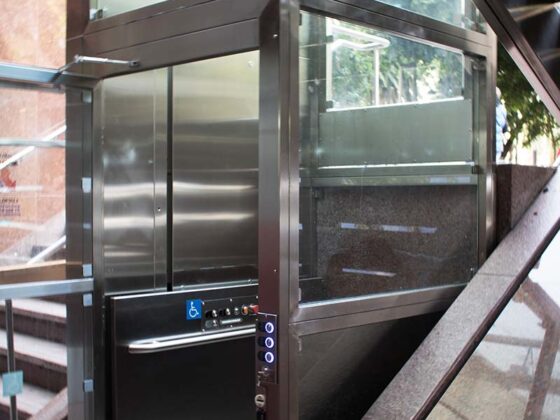

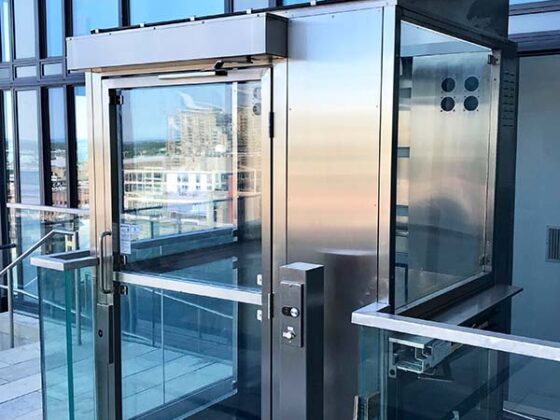

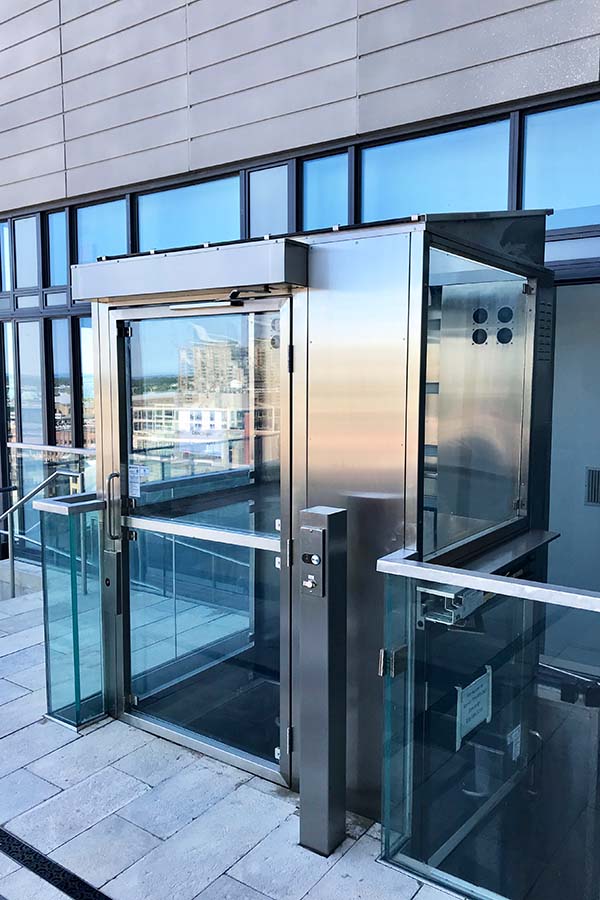

Lux version consists of an enclosed lift, beautifully framed in stainless steel with glass inserts for high-end commercial or residential projects

Design inspiration guide

Features

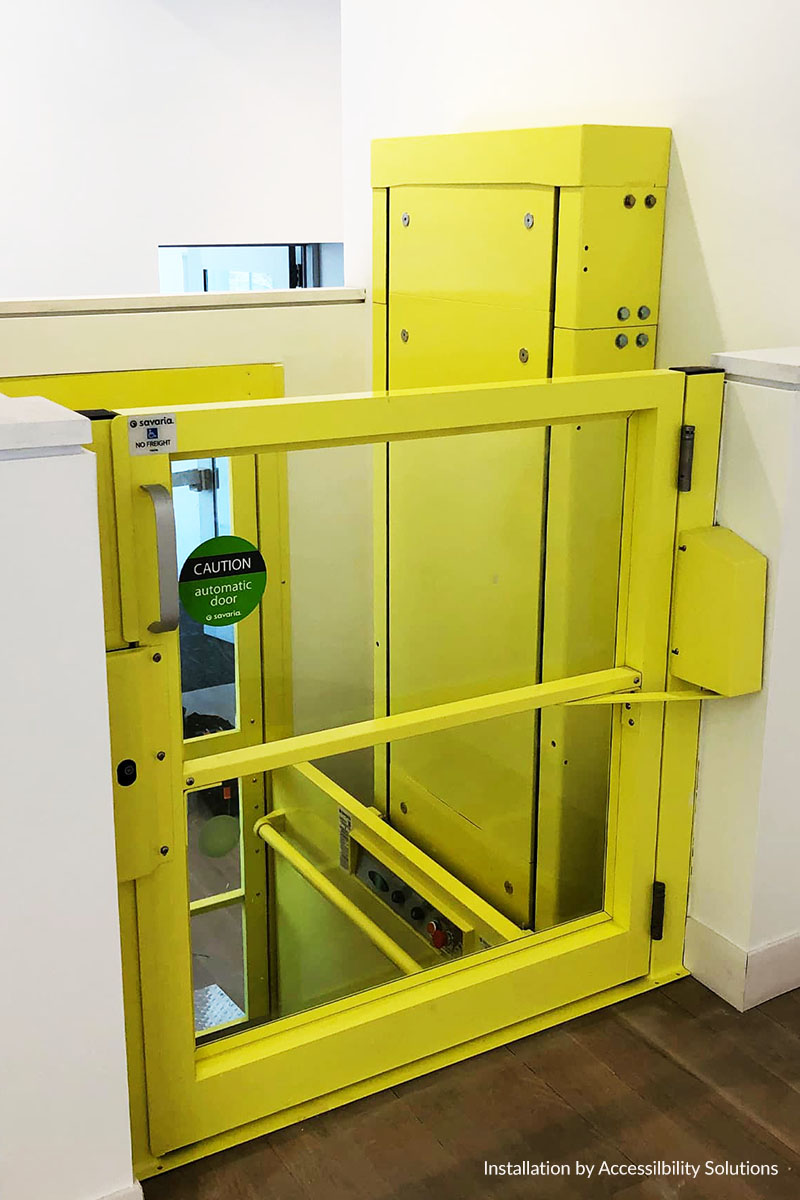

- Flexible enclosure design: Can be built to suit virtually any home or commercial project. Enclosed with aluminium and acrylic inserts and top dome with active ventilation system; corrosion-resistant steel components, make it ideal for outdoor applications.
- Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
- Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
- Other standard features: 914 mm x 1371 mm standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail.
- Standard finishes:
  - V-1504 & V-1504 enclosed: Beige powder-coat paint.

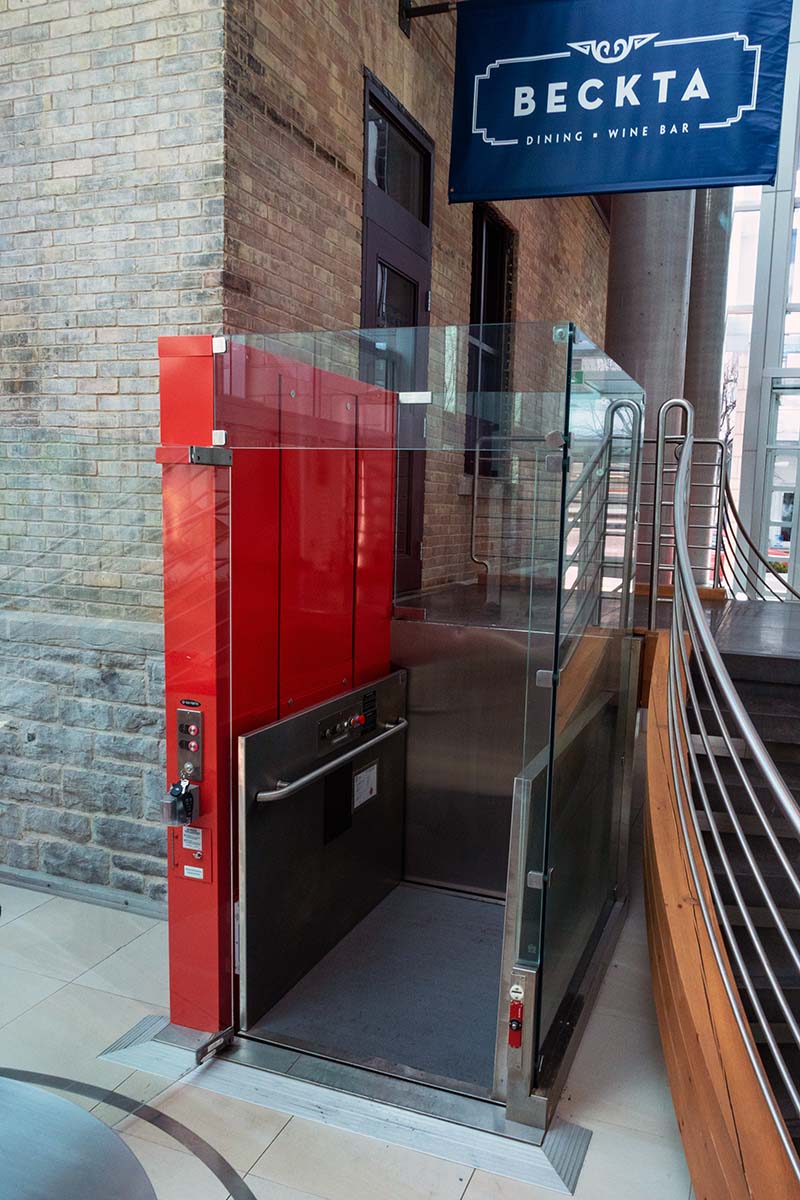

  - V-1504 Prestige: With half-inch structural tempered glass and no visible frame, this lift is the ultimate statement for creating barrier-free access in commercial applications. Tower is finished in primer grey. The framed Prestige version has frameless glass doors and 3″ x 3″ structural tubing in each corner. The structure underneath the stainless steel cladding is finished in primer gray or painted in the optional colour of the lift.

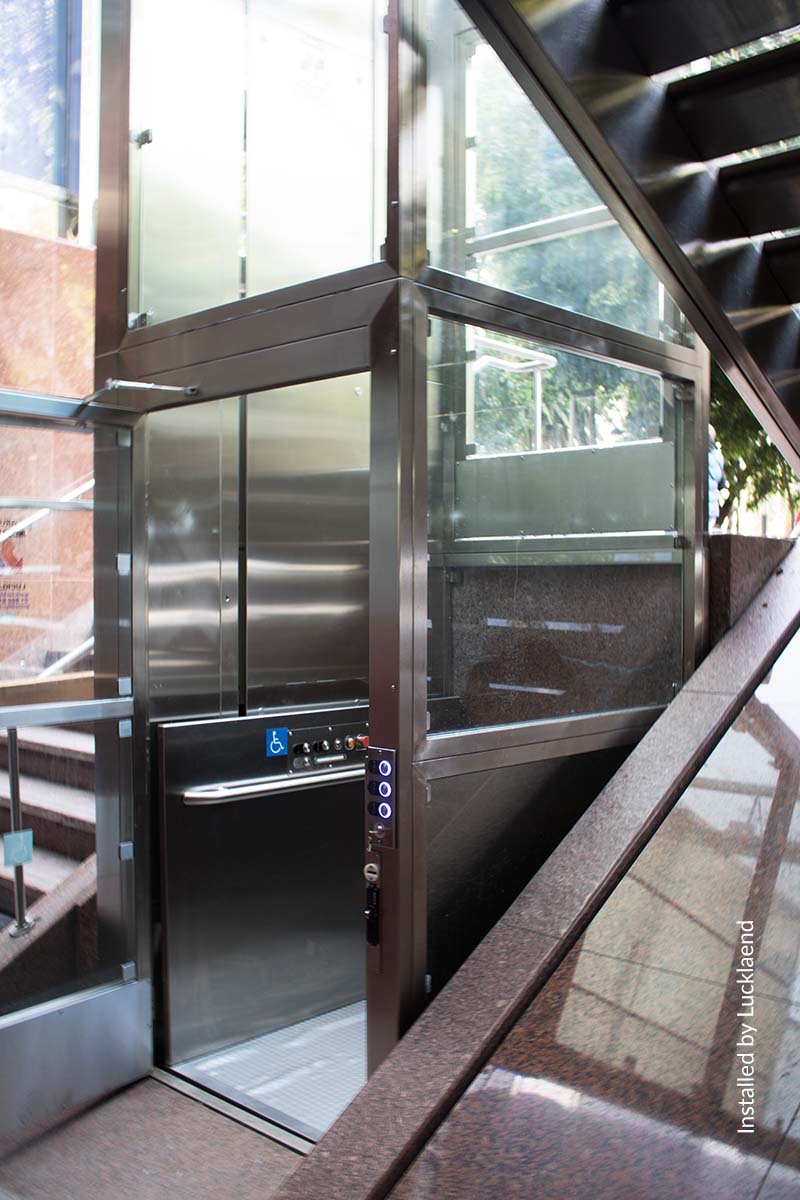

  - V-1504 Lux: Framed in 304 stainless steel no. 4 with tempered or laminated glass inserts, this lift is a beautiful complement for lobby areas, offices and public buildings.
- Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 1070 mm (42 1/8″) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Options
- Optional finishes:
  - V-1504 & V-1504 Enclosed optional finishes: A wide array of powder-coat colours in gloss, semi gloss or textured finish are available, including custom colour. Enclosure options comprise of tempered or laminated glass panels, or acrylic panels.
  - V-1504 Prestige: Laminated tempered glass for enclosure; a wide array of powder-coat colours in gloss, semi-gloss or textured finish are available for tower, including custom colour.
- Other options:
  - V-1504 & V-1504 Enclosure other options: Up to 4 stops, commercial package including alarm, auto fold-up ramp, underpan obstruction sensors, platform gate, battery backup, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminium doors, steel ULC fire rated doors, wooden door, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone.
  - V-1504 Prestige & Lux: Commercial package including alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire-rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather-resistant lock, folding seat, 60 mm buttons, ADA hands-free phone.

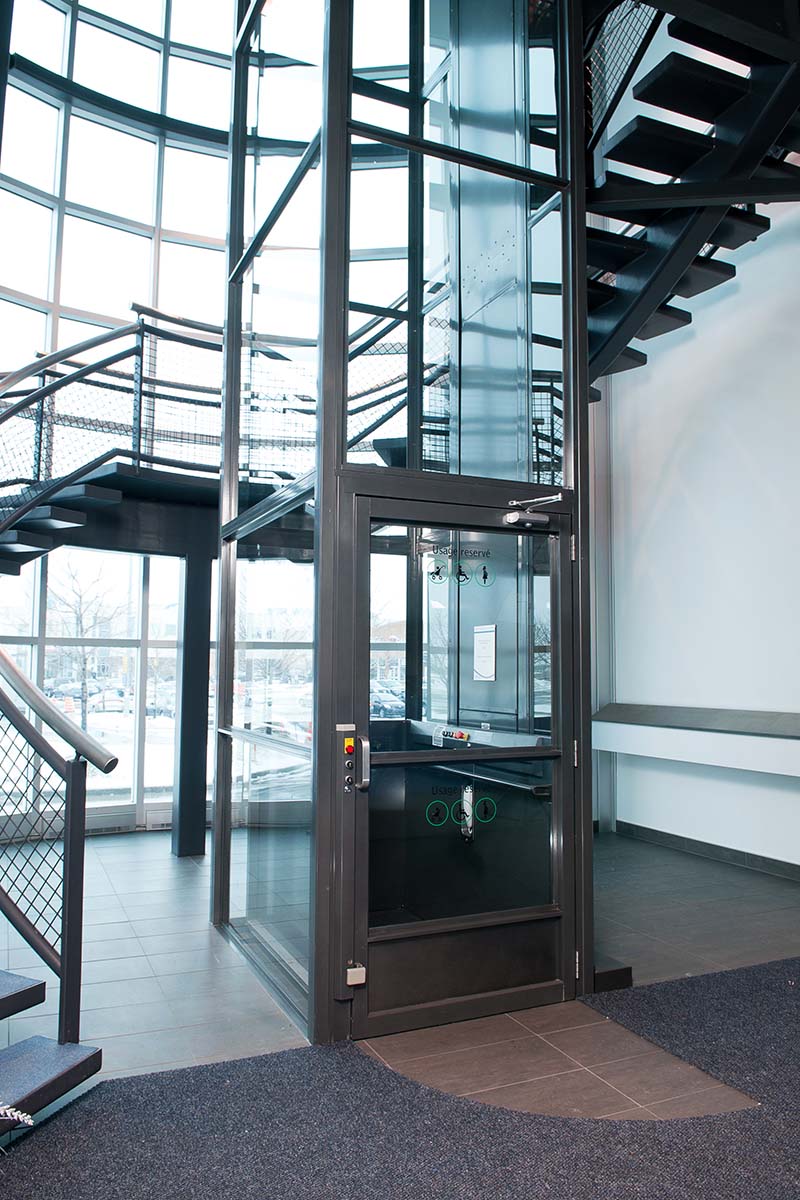

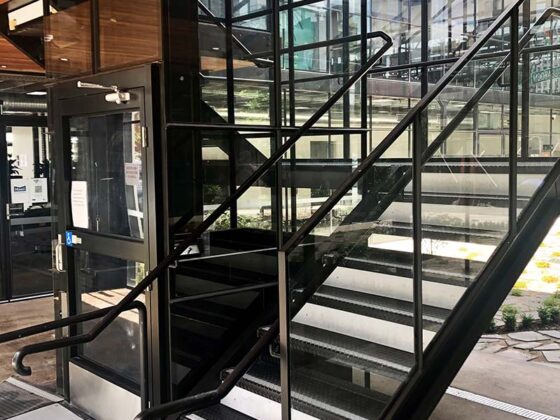

Savaria V-1504 Vertical Platform Lift - enclosed - black

Technical specifications

MODEL	CAB FLOOR AREA	EXTERIOR DIMENSIONS	LOAD	SPEED
V-1504 Unenclosed	914 mm x 1219 mm 914 mm x 1371 mm 914 mm x 1524 mm Custom sizes up to 1067 mm x 1524 mm Configurations: Type 1, 2, 3, 4, 5	1070 mm (Standard Wall Height)	340 kg	0.1 m/s
V-1504 Enclosed / Lux / Prestige	Configurations: Type 1, 2, 3, 4
V-1504 Prestige Framed	Configurations: Type 1

TRAVEL HEIGHT

7 m (Max)

INSTALLATION

76.2 mm pit depth

STOPS

V-1504 Unenclosed	2 to 4
V-1504 Enclosed	2 to 4
V-1504 Prestige	2
V-1504 Lux	2 to 4

POWER SUPPLY

120 VAC, 20 amp, single phase, 60 Hz, 220V / 50 HZ

DRIVE SYSTEM

2:1 roller chain hydraulic

TECHNICAL COMPLIANCE

ASME A18.1-2003

OPERATION

constant pressure

MACHINE ROOM

roomless

USE

residential / commercial
indoor / outdoor

WARRANTY

36 months parts

Documents

Landing Doors and Locks Selection Chart

V-1504 Brochure

V-1504 Lux & Prestige Brochure

V-1504 Colour Chart

V-1504 Owner's Manual

V-1504 Planning Guide

Please note, product details for Asia may vary. Please consult our sales offices for complete specifications.
